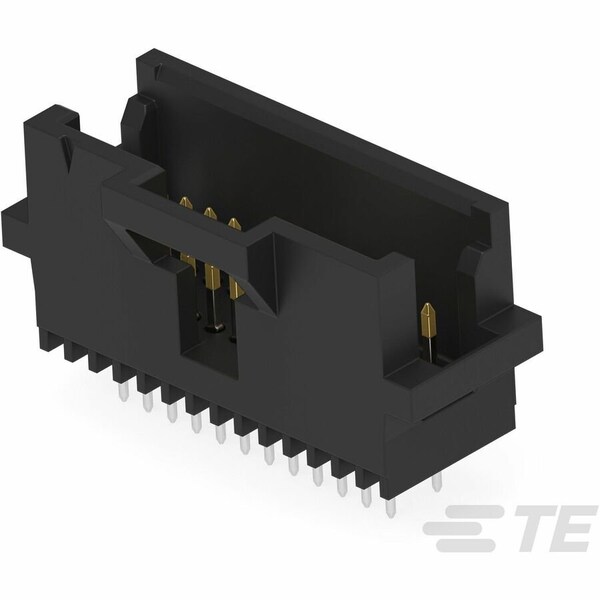

24 SYSTEM 50 HDR DRST SHRD
Mfr # 6-104068-1
Zoro # G300939588
product price:Â
$
6.69
/ea
Sold in multiples of 24 for $160.56
Key Features
Color
Black
Max. Voltage
30V AC
Maximum Voltage
30 V AC
Current
1 A
Standards
UL E28476; CSA LR7189
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 6-104068-1
- Zoro #
- G300939588
- UPC #
- -
- Country of Origin
- Mexico
Dimensions
- Contact Plating Thickness
- 30 µin
Details
- Item
- PCB Mount Header
- Color
- Black
- Max. Voltage
- 30V AC
- Maximum Voltage
- 30 V AC
- Current
- 1 A
- Standards
- UL E28476; CSA LR7189
- Maximum Operating Temperature
- 105 Degrees C
- UL 94 Flammability Rating
- V-0
- Hole Center to Center
- 1.27 mm
- Material
- Thermoplastic
- Connection Material
- Copper Alloy
- Terminal Type
- Through Hole
- Max. Temp.
- 105°C
- Features
- With Board Standoff; Shrouded
- Current Rating
- 1 A
- Number of Contacts
- 24
- Number of Rows
- 2
- Contact Finish
- Gold Plated
- Contact Type
- Pin
- Terminal Finish
- Tin Plated
- Flammability Rating
- UL 94 V-0
- Connector Terminates To
- Printed Circuit Board
