Shop TE CONNECTIVITY

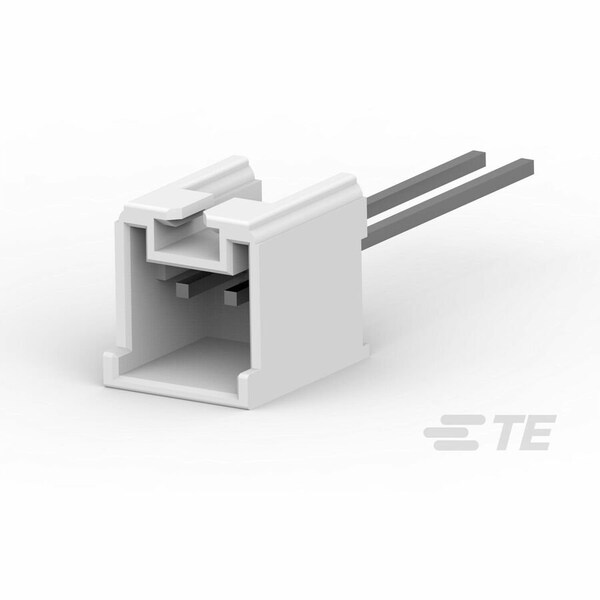

2.5 S.D.L STD V 2P HDR ON/TAPE

  • Mfr # 917894-1
  • Zoro # G800940657
product price:
$
0.83
/ea
Sold in multiples of 900 for $747.00

Key Features

Color
Natural
Insulation Material
Nylon
Max. Voltage
250V AC, 250V DC
Maximum Voltage
250 V AC/DC
Application
Signal
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
917894-1
Zoro #
G800940657
UPC #
-
Country of Origin
China

Dimensions

Height
9.8 mm
Length
0.29 in
Contact Plating Thickness
0.8 µm

Details

Item
PCB Mount Header
Color
Natural
Insulation Material
Nylon
Max. Voltage
250V AC, 250V DC
Maximum Voltage
250 V AC/DC
Application
Signal
Current
3 A
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Features
Shrouded
Material
Nylon
Max. Temp.
105°C
Connection Material
Brass
Terminal Type
Through Hole - Solder
Hole Center to Center
2.5 mm
For Use With
Plug Housing
Contact Type
Tab
Current Rating
3 A
Contact Finish
Tin Plated
Number of Rows
1
Number of Contacts
2
Terminal Finish
Pre-Tin Plated
Connector Terminates To
Printed Circuit Board
Flammability Rating
UL 94 V-0
