Shop TE CONNECTIVITY

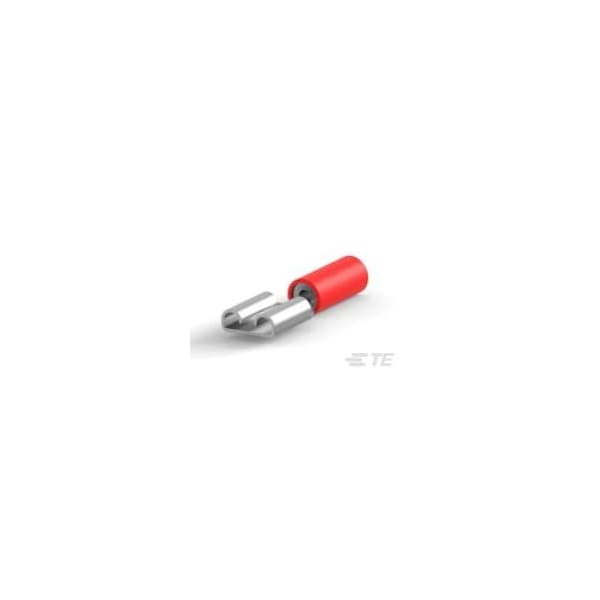

250 PIDG FASTON REC

  • Mfr # 9-160583-5
  • Zoro # G000976319
product price:
$
0.67
/ea
Sold in multiples of 152 for $101.84

Key Features

Wire Size
.3-1.5 mm2
Overall Length
.874 in
Terminal Type
Receptacle
Fully Insulated
No
Connection Capacity
Single
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
9-160583-5
Zoro #
G000976319
UPC #
-
Country of Origin
Mexico

Dimensions

Wire Size
.3-1.5 mm2
Overall Length
.874 in
Mating Tab Width
.25 in
Mating Tab Thickness
.032 in
Wire Insulation Diameter (Max)
.14 in

Details

Terminal Type
Receptacle
Fully Insulated
No
Connection Capacity
Single
Crimp Type
Tab-Lok
Wire Insulation Support
With
Barrel Color
Red
Mating Retention Type
Dimple
Plating Material
Tin
Insulation Material
Nylon
Terminates To
Wire & Cable
Insulated
Yes
Contact Base Material
Phosphor Bronze
Terminal Orientation
Straight
Voltage (Max)
300 V
Insertion Force
Normal
FASTON
Yes
Disconnect Type
Quick Disconnect
