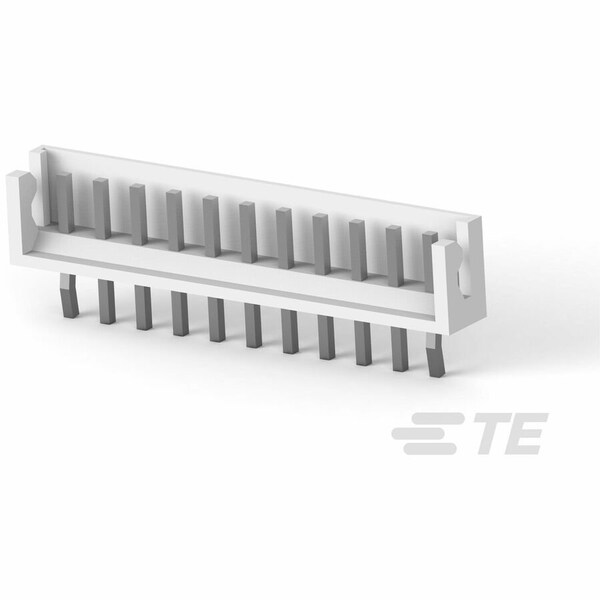

2.5MM HDR 11POS VERTICAL.CONNECTOR

  • Mfr # 1-440052-1
  • Zoro # G100937906
product price:
$
0.91
/ea
Sold in multiples of 200 for $182.00

Key Features

Color
Natural
Min. Single Wire Size
28 AWG
Insulation Material
Nylon
Max. Voltage
250V AC, 250V DC
Maximum Voltage
250 V AC/DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1-440052-1
Zoro #
G100937906
UPC #
-
Country of Origin
China

Dimensions

Min. Single Wire Size
28 AWG
Width
0.1496 in
Height
0.236 in
Max. Insulation Dia.
0.075 in
Max. Single Wire Size
22 AWG
Length
30 mm
Contact Plating Thickness
80 µin
Minimum Single Wire Size
28 AWG
Maximum Single Wire Size
22 AWG

Details

Item
Connector
Color
Natural
Insulation Material
Nylon
Max. Voltage
250V AC, 250V DC
Maximum Voltage
250 V AC/DC
Maximum Operating Temperature
85 Degrees C
UL 94 Flammability Rating
V-0
Terminal Type
Through Hole
Connection Material
Brass
Hole Center to Center
2.5 mm
Connector Type
Header
Max. Temp.
85°C
Material
Nylon
Wire Type
Discrete
For Use With
440133-x
Features
Partially Shrouded
Current Rating
3 A
Number of Contacts
11
Contact Type
Pin
Number of Rows
1
Contact Finish
Tin Plated
Terminal Finish
Tin Plated
Flammability Rating
UL 94 V-0
