Contact our U.S. based teamSpecifications
Product Information
MFR #
5223514-1
Zoro #
G800939637
UPC #
-
Country of Origin
United States
Dimensions
Width
0.622 in
Height
11.2 mm
Contact Plating Thickness
0.05 µm
Details
Item

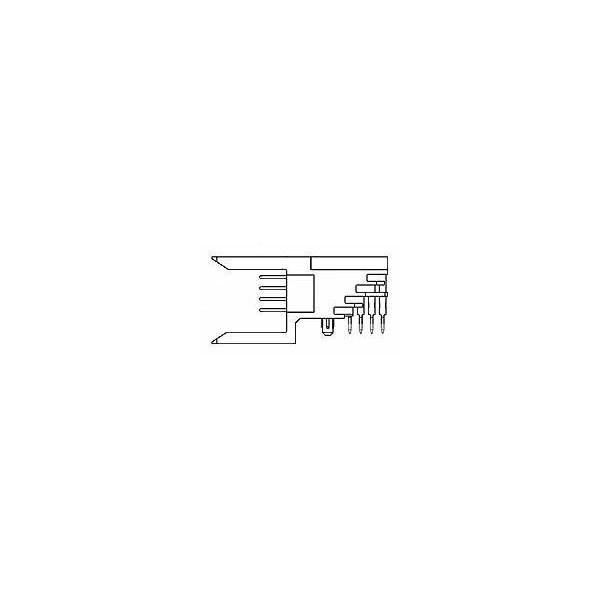

PCB Mount Header
Insulation Material
Liquid Crystal Polymer
Max. Voltage
30V AC
Maximum Voltage
30 V AC
Application
Power, Signal
Current
3 A
Series
Signal
Maximum Operating Temperature
125 Degrees C
Hole Center to Center
2 mm
Material
Liquid Crystal Polymer
Connection Material
Phosphor Bronze
Max. Temp.
125°C
Terminal Type
Through Hole - Press-Fit
Number of Contacts
24
Contact Finish
Gold over Palladium Nickel
Current Rating
3 A
Number of Rows
4
Contact Type
Pin
Connector Terminates To
Printed Circuit Board
Terminal Finish
Tin Plated
