Shop TE CONNECTIVITY

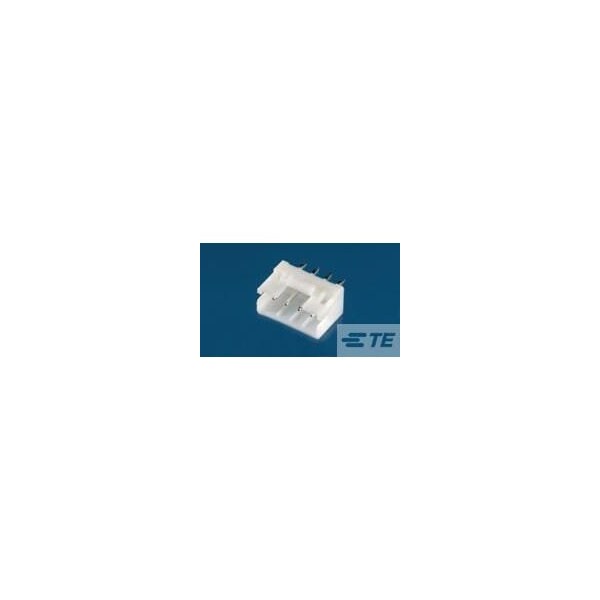

2mm PITCH HPI POST HEADER VERTICAL 5P

  • Mfr # 1735446-5
  • Zoro # G001037170
product price:
$
0.14
/ea
Sold in multiples of 900 for $126.00

Key Features

Color
Natural
Max. Voltage
250V AC, 250V DC
Maximum Voltage
250 V AC/DC
Width
0.185 in
Height
6.07 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1735446-5
Zoro #
G001037170
UPC #
-
Country of Origin
China

Dimensions

Width
0.185 in
Height
6.07 mm
Length
12 mm
Contact Plating Thickness
2.03 µm

Details

Item
PCB Mount Header
Color
Natural
Max. Voltage
250V AC, 250V DC
Maximum Voltage
250 V AC/DC
Maximum Operating Temperature
85 Degrees C
UL 94 Flammability Rating
V-0
Hole Center to Center
2 mm
Connection Material
Copper Alloy
Max. Temp.
85°C
Wire Type
Discrete
For Use With
1735447-x
Wire Range
30 AWG
Material
Thermoplastic
Terminal Type
Through Hole
Features
Partially Shrouded
Current Rating
3 A
Contact Finish
Bright Tin Plated
Contact Type
Pin
Number of Rows
1
Number of Contacts
5
Terminal Finish
Bright Tin Plated
Flammability Rating
UL 94 V-0
Connector Terminates To
Printed Circuit Board
