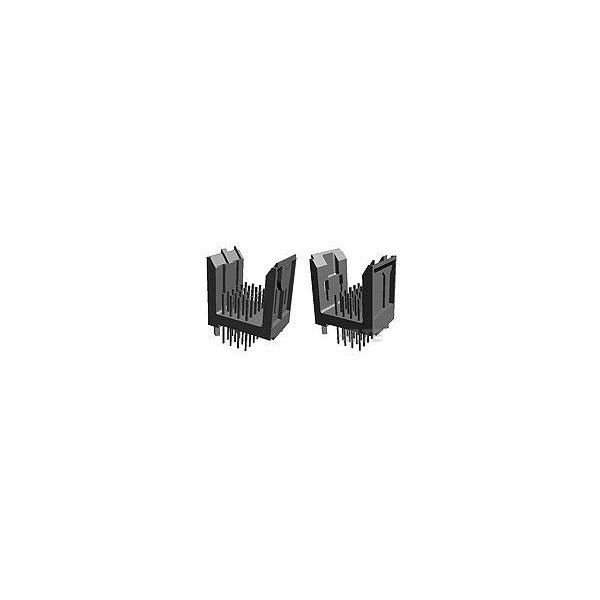

2MMFB ASY 096 SIG HDR EN 4.25
Mfr # 5536514-3
Zoro # G100939467
product price:Â $12.55
/ea
Sold in multiples of 24 for $301.20
Key Features
Insulation Material
Liquid Crystal Polymer
Application
Signal
Current
3 A
Series
Signal
Width
0.622 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 5536514-3
- Zoro #
- G100939467
- UPC #
- -
- Country of Origin
- China
Dimensions
- Width
- 0.622 in
- Height
- 17 mm
- Contact Plating Thickness
- 0.76 µm
Details
- Item
- PCB Mount Header
- Insulation Material
- Liquid Crystal Polymer
- Application
- Signal
- Current
- 3 A
- Series
- Signal
- Maximum Operating Temperature
- 125 Degrees C
- Terminal Type
- Through Hole - Press-Fit
- Hole Center to Center
- 2 mm
- Max. Temp.
- 125°C
- Material
- Liquid Crystal Polymer
- Connection Material
- Phosphor Bronze
- For Use With
- Receptacle Assembly
- Contact Type
- Pin
- Number of Rows
- 4
- Contact Finish
- Gold Plated
- Number of Contacts
- 96
- Current Rating
- 3 A
- Connector Terminates To
- Printed Circuit Board
- Terminal Finish
- Tin Plated
