This item is Discontinued.

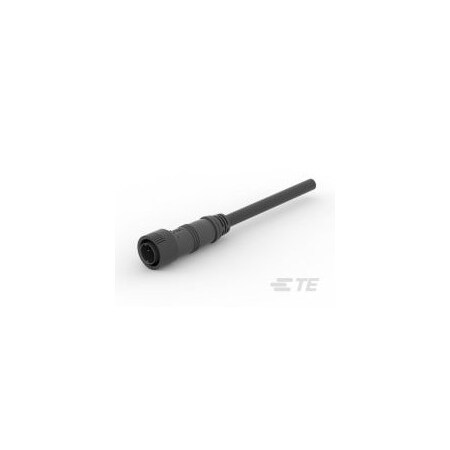

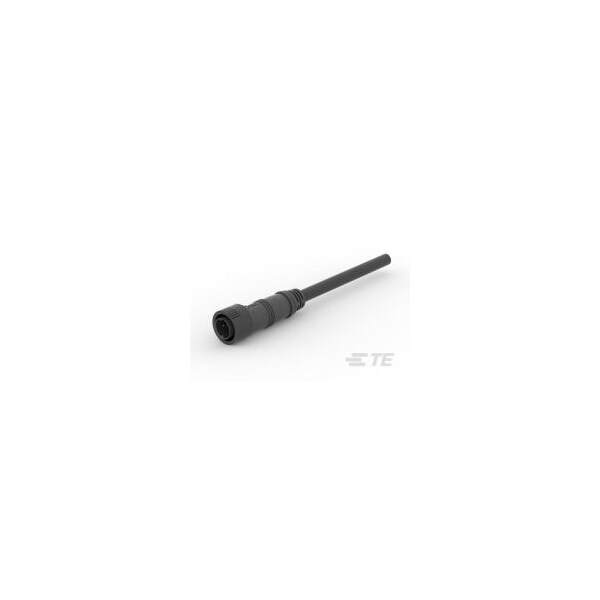

Te Connectivity 2P MALE CABLEASSEMBLY 9-2834000-1

2P MALE CABLEASSEMBLY (Discontinued)

  • Mfr # 9-2834000-1
  • Zoro # G601048590
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9-2834000-1
Zoro #
G601048590
UPC #
-
Country of Origin
China

Dimensions

Wire/Cable Size
18 AWG
Contact Mating Area Plating Thickness
.4 to 3.5 µm

Details

Connector Type
Connector Assembly
UL Flammability Rating
UL 94V-0
Contact Mating Area Plating Material
Tin
Contact Layout
Inline
UV Exposure Rated
Yes
Housing Material
PBT GF
IP Water Sealing Level
7
Number of Rows
1
Centerline (Pitch)
.22 in
Connector Design
Closed End
Connector Style
Plug
Stamped and Formed
Yes
Housing Color
Black
Termination Method to Wire & Cable
Crimp
Contact Current Rating (Max)
7A
Contact Type
Tab
Circuit Identification Feature
With
Agency/Standard
UL
Product Type
Connector
Operating Temperature Range
-20 to 85 °C
Header Mating Direction
Horizontal
IP Dust Sealing Level
6
Operating Voltage
300 VAC, 300 VDC
Number of Positions
2
Connector & Contact Terminates To
Wire & Cable
