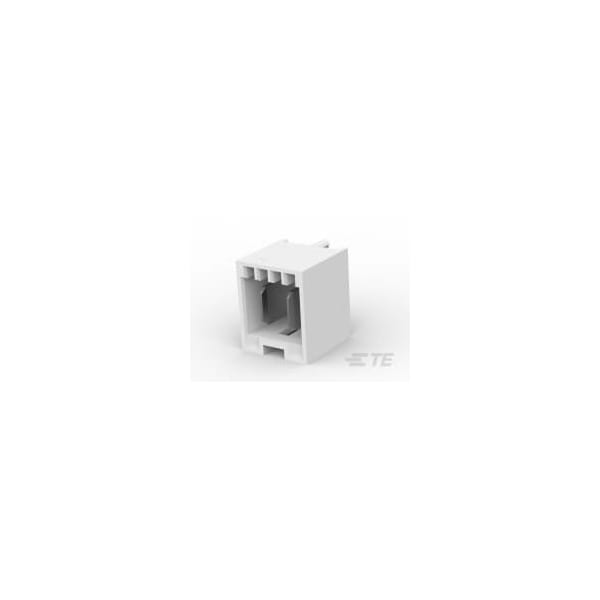

2P RAST 5 Tab Header THV
Mfr # 1-1971895-2
Zoro # G000941577
product price:Â
$
0.52
/ea
Sold in multiples of 152 for $79.04
Key Features
Color
Natural
Max. Voltage
250V AC
Maximum Voltage
250 V AC
Height
12.8 mm
Maximum Operating Temperature
120 Degrees C
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 1-1971895-2
- Zoro #
- G000941577
- UPC #
- -
- Country of Origin
- China
Dimensions
- Height
- 12.8 mm
- Length
- 0.4 in
- Contact Plating Thickness
- 149.6 µin
Details
- Item
- PCB Mount Header
- Color
- Natural
- Max. Voltage
- 250V AC
- Maximum Voltage
- 250 V AC
- Maximum Operating Temperature
- 120 Degrees C
- UL 94 Flammability Rating
- V-0
- Features
- Shrouded
- For Use With
- Connector/Cable Assembly
- Hole Center to Center
- 5 mm
- Max. Temp.
- 120°C
- Connection Material
- Copper Alloy
- Material
- Nylon
- Contact Type
- Tab
- Number of Rows
- 1
- Contact Finish
- Tin Plated
- Number of Contacts
- 2
- Flammability Rating
- UL 94 V-0
- Terminal Finish
- Matte Tin Plated
- Connector Terminates To
- Printed Circuit Board
