Shop TE CONNECTIVITY

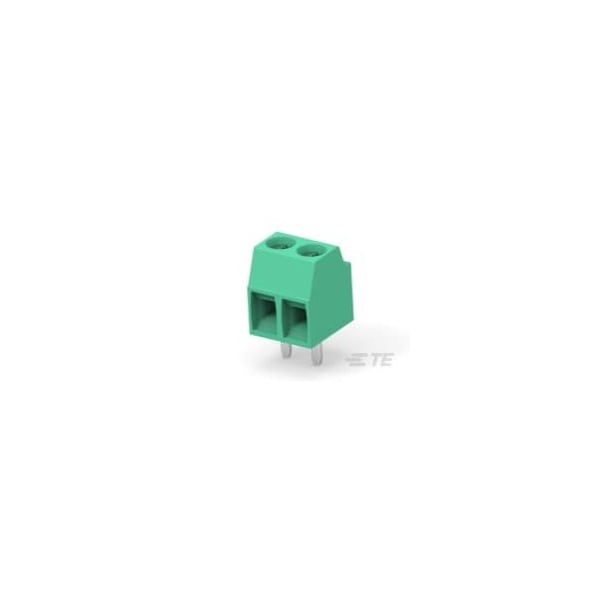

2P STRAIGHT SIDE ENTRY 3.5MM

  • Mfr # 1546551-2

  • Zoro # G601037600

product price:  $0.91
/ea
Sold in multiples of 95 for $86.45

Key Features

Voltage
300 VAC
Centerline (Pitch)
.138 in
Screwless Terminal Block
No
PCB Tail Length
.138 in
Operating Temperature Range
-40 to 110°C
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1546551-2
Zoro #
G601037600
UPC #
-
Country of Origin
Italy

Dimensions

PCB Tail Length
.138 in
Screw Size
M2

Details

Voltage
300 VAC
Centerline (Pitch)
.138 in
Screwless Terminal Block
No
Operating Temperature Range
-40 to 110°C
Wire Protection
With
Connector System
Wire-to-Board
Contact Mating Area Plating Material
Tin
Housing Material
PA 66
Wire Entry Angle
Side
Connector Style
Header
Current Rating (Max)
12A
Screw Flange
With
Connector & Contact Terminates To
Printed Circuit Board
Number of Positions
2
Interlock
Without
Threaded Flange
Without
Contact Current Rating (Max)
12A
Mounting Angle
Vertical
Block Type
Straight
Connector Mounting Type
Board Mount
Stacked Levels
Without
Contact Base Material
Copper Alloy
Number of Rows
1
Screw Plating Material
Nickel
Housing Color
Green
Side Stackable
Yes
Closed End
With
Wire Range
28 to 16 AWG
Screw Material
Copper Alloy
Circuit Application
Power & Signal
Contact Mount
Through Hole
