This item is Discontinued.

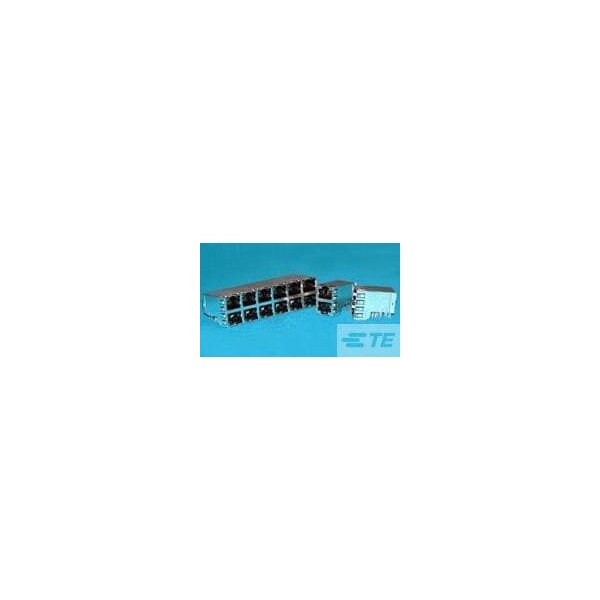

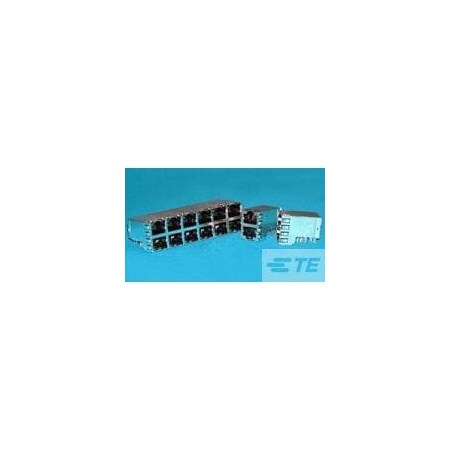

Te Connectivity 2X6 OFFSET STK MJ SHLD G/YLED 6368035-3

2X6 OFFSET STK MJ SHLD G/YLED (Discontinued)

  • Mfr # 6368035-3
  • Zoro # G001010029
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6368035-3
Zoro #
G001010029
UPC #
-
Country of Origin
China

Dimensions

PCB Thickness (Recommended)
.062 in
Contact Mating Area Plating Material Thickness
50µin
Connector Height
.905 in
PCB Tail Length
.171 in

Details

Number of Positions
8
Shielded
Yes
Centerline (Pitch)
.04 in
Shield Material
Copper Alloy
LED Color (Bottom Right)
Green/Yellow
Number of PCB Ground Tabs
9
Modular Jacks & Plugs Products
RJ Type Jacks & Plugs
Contact Mating Area Plating Material
Gold
Housing Material
PBT Polyester
Contact Base Material
Phosphor Bronze
Port Matrix Configuration
2 x 6
Port Configuration
Multiple Ports
Latch Orientation
Standard - Latch Down
Connector Style
Jack
Shield Plating Material
Tin over Copper
Operating Temperature Range
-22 to 158°F
Connector Mounting Type
Panel, Board Mount
Grounding Options
PCB and Panel Ground
Entry Location
Side
Housing Color
Black
PCB Contact Termination Area Plating Material
Tin
Performance Category
Cat 5
Profile
Offset - Overhangs PCB
Status Indicator
LED
Connectors & Connector Components Type
Connector
Panel Mount Feature
Without
Termination Method to Printed Circuit Board
Through Hole - Press-Fit
LED Color (Top Left)
Green/Yellow
Circuit Application
Signal
Keyed
No
Multiple Port Configuration
Stacked
PCB Mount Orientation
Right Angle
Connector Product Type
Connector Assembly
LED Color (Bottom Left)
Green/Yellow
UL Flammability Rating
UL 94V-0
Contact Underplating Material
Nickel
Number of Contacts Loaded
8
Connector & Contact Terminates To
Printed Circuit Board
Modular Jack & Plug Interface Type
RJ45
LED Color (Top Right)
Green/Yellow
Grounding Tab Plating Material
Tin over Copper
Connector Contact Density
Standard
