  11. 2X7 MTE RCPT SR PLAIN .100CL
This item is Discontinued.

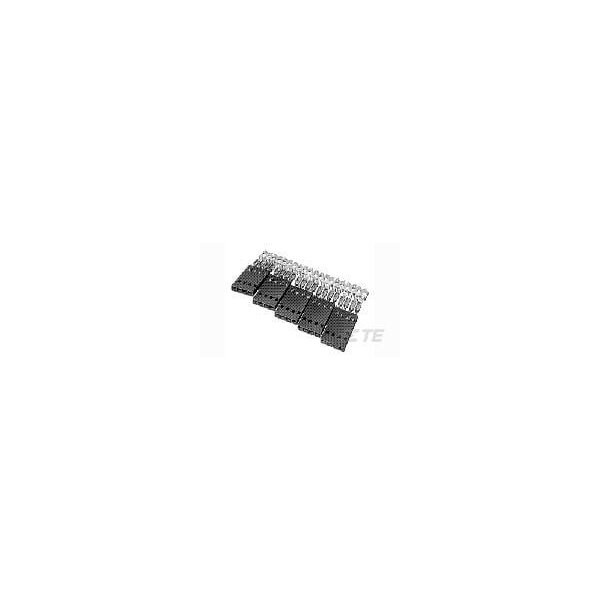

Te Connectivity 2X7 MTE RCPT SR PLAIN .100CL 5-103976-6

2X7 MTE RCPT SR PLAIN .100CL (Discontinued)

  • Mfr # 5-103976-6
  • Zoro # G201009670
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5-103976-6
Zoro #
G201009670
UPC #
-
Country of Origin
Mexico

Dimensions

Min. Single Wire Size
26 AWG
Height
2.49 mm
Max. Insulation Dia.
0.054 in
Max. Single Wire Size
22 AWG
Length
35.56 mm
Minimum Single Wire Size
26 AWG
Maximum Single Wire Size
22 AWG
For Minimum Wire Size - Solid
26 AWG

Details

Item
Connector
Type
Receptacle
Color
Black
Insulation Material
Thermoplastic
Max. Voltage
267V
Maximum Voltage
267 V
Current
3 A
Standards
CSA LR7189; UL E28476
Maximum Operating Temperature
105 Degrees C
Number of Ports
7
UL 94 Flammability Rating
V-0
Terminal Type
Insulation Displacement Crimp
Connector Type
Receptacle
Hole Center to Center
2.54 mm
Max. Temp.
105°C
Material
Thermoplastic
Connection Material
Phosphor Bronze
Flammability Rating
UL 94 V-0
Connector Terminates To
Wire & Cable
Terminal Finish
Tin Plated
Current Rating
3 A
Number of Rows
1
Number of Contacts
7
Contact Type
Socket
Termination Style
Insulation Displacement Crimp
