This item is Discontinued.

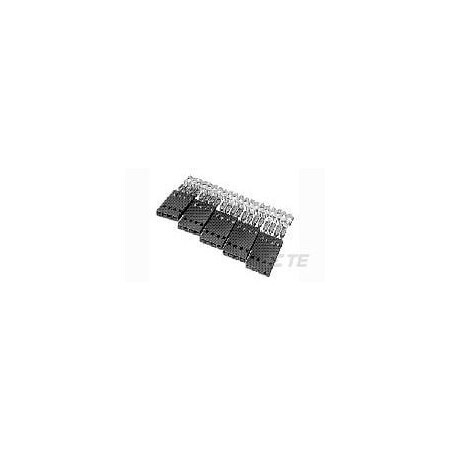

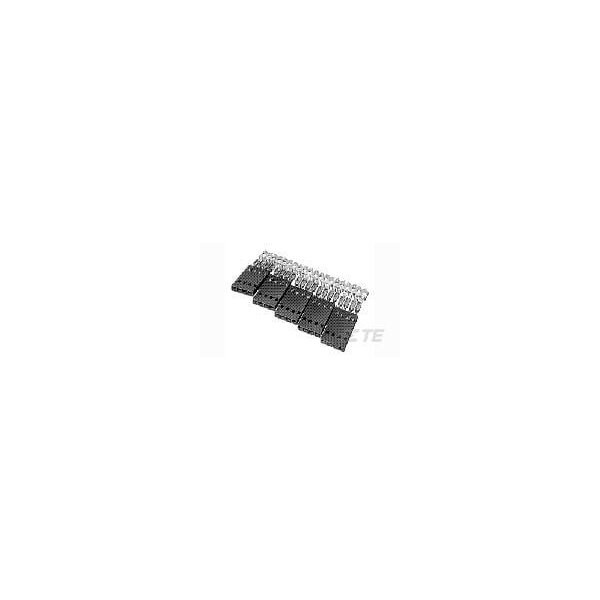

Te Connectivity 2X8 MTE RCPT SR PLAIN .100CL 5-103976-7

2X8 MTE RCPT SR PLAIN .100CL (Discontinued)

  • Mfr # 5-103976-7
  • Zoro # G201009687
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5-103976-7
Zoro #
G201009687
UPC #
-
Country of Origin
Mexico

Dimensions

Min. Single Wire Size
26 AWG
Height
2.49 mm
Max. Insulation Dia.
0.054 in
Max. Single Wire Size
22 AWG
Length
1.6 in
Minimum Single Wire Size
26 AWG
Maximum Single Wire Size
22 AWG

Details

Item
Connector
Type
Receptacle
Color
Black
Insulation Material
Thermoplastic
Max. Voltage
267V
Maximum Voltage
267 V
Current
3 A
Standards
UL E28476; CSA LR7189
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Max. Temp.
105°C
Material
Thermoplastic
Terminal Type
Insulation Displacement Crimp
Connection Material
Phosphor Bronze
Connector Type
Receptacle
Hole Center to Center
2.54 mm
Flammability Rating
UL 94 V-0
Connector Terminates To
Wire & Cable
Terminal Finish
Tin Plated
Current Rating
3 A
Number of Rows
1
Contact Type
Socket
Number of Contacts
8
Termination Style
Insulation Displacement Crimp
