This item is Discontinued.

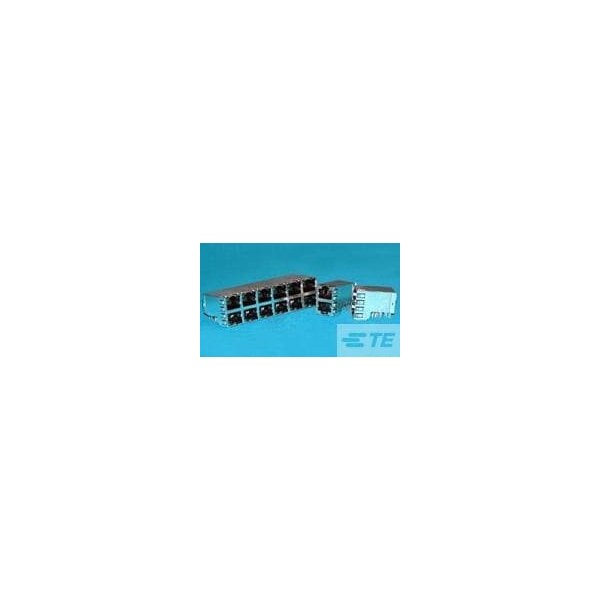

2X8 OFFSET STK MJ SHLD LED(Y&G (Discontinued)
-
Mfr #
6116317-6
-
Zoro #
G501010093
Shop for similar items
Specifications
Contact Mating Area Plating Material Thickness
15µin
PCB Thickness (Recommended)
.062 in
Performance Category
Cat 5e
Profile
Offset - Overhangs PCB
Contact Mating Area Plating Material
Gold
Grounding Tab Plating Material
Tin over Copper
Centerline (Pitch)
.04 in
PCB Mount Orientation
Right Angle
Contact Underplating Material
Nickel
LED Color (Top Right)
Yellow
Termination Method to Printed Circuit Board
Through Hole - Press-Fit
Connector Mounting Type
Panel, Board Mount
Modular Jack & Plug Interface Type
RJ45
Shield Material
.010 [.25] Copper Alloy
Connector Contact Density
Standard
Connector & Contact Terminates To
Printed Circuit Board
Contact Base Material
Phosphor Bronze
Panel Mount Feature
Without
Circuit Application
Signal
LED Color (Top Left)
Green
Shield Plating Material
Tin over Copper
Operating Temperature Range
-22 to 158°F
Multiple Port Configuration
Stacked
LED Color (Bottom Right)
Yellow
LED Color (Bottom Left)
Green
Number of PCB Ground Tabs
11
Port Configuration
Multiple Ports
PCB Contact Termination Area Plating Material
Tin
Connector Product Type
Connector Assembly
Latch Orientation
Standard - Latch Down
UL Flammability Rating
UL 94V-0
Modular Jacks & Plugs Products
RJ Type Jacks & Plugs
Number of Contacts Loaded
8
Port Matrix Configuration
2 x 8
Connectors & Connector Components Type
Connector
Grounding Options
PCB and Panel Ground
PCB Ground Type
PCB ACTION PIN Grounds
