  11. 30 MODII 2PC HDR DRRA W/HLDWN
This item is Discontinued.

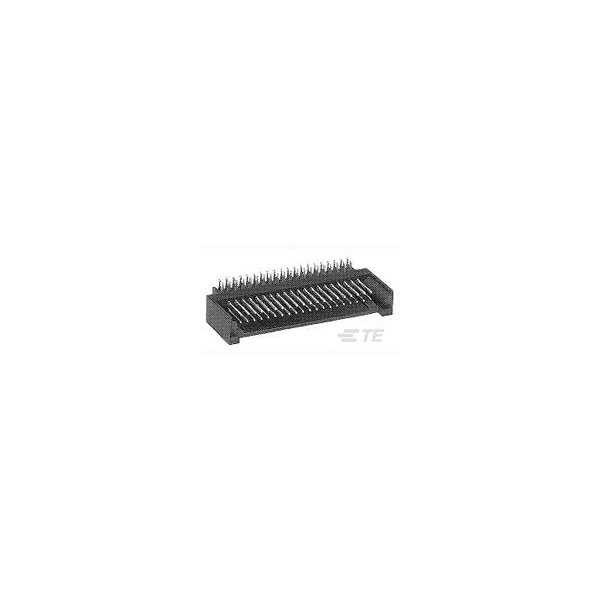

Te Connectivity 30 MODII 2PC HDR DRRA W/HLDWN 534245-2

30 MODII 2PC HDR DRRA W/HLDWN (Discontinued)

  • Mfr # 534245-2
  • Zoro # G700940528
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
534245-2
Zoro #
G700940528
UPC #
-
Country of Origin
Mexico

Dimensions

Height
0.32 in
Length
0.762 in
Contact Plating Thickness
30 µin

Details

Item
PCB Mount Header
Color
Black
Insulation Material
Thermoplastic
Max. Voltage
250V AC
Maximum Voltage
250 V AC
Application
Signal
Current
3 A
Series
AMPMODU
Standards
UL E28476; CSA LR7189
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Connection Material
Phosphor Bronze
Material
Thermoplastic
Hole Center to Center
2.54 mm
Terminal Type
Through Hole - Solder
Max. Temp.
105°C
Number of Rows
2
Current Rating
3 A
Contact Type
Pin
Number of Contacts
30
Contact Finish
Bright Gold Plated
Connector Terminates To
Printed Circuit Board
Flammability Rating
UL 94 V-0
Terminal Finish
Nickel Plated
