This item is Discontinued.

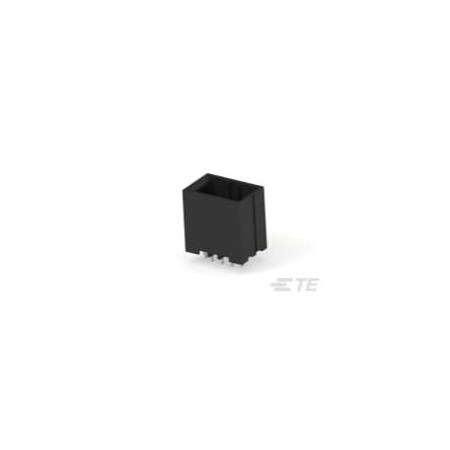

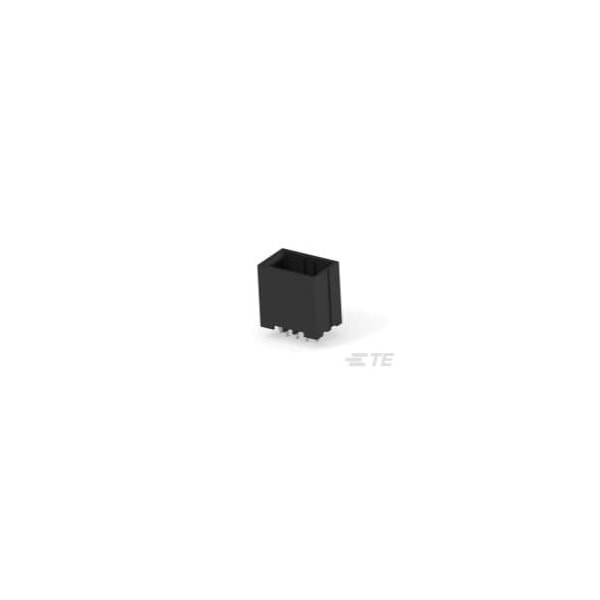

Te Connectivity 3.81 DYNAMIC CAP H VER 6P 178323-5

3.81 DYNAMIC CAP H VER 6P (Discontinued)

  • Mfr # 178323-5
  • Zoro # G501048669
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
178323-5
Zoro #
G501048669
UPC #
-
Country of Origin
China

Dimensions

Width
0.568 in
Height
21.6 mm
Length
21.62 mm

Details

Item
Connector
Color
Black
Max. Voltage
250V AC/DC
Maximum Voltage
250 V AC/DC
Current
9.5 A
Series
3000
Standards
CSA Certified; UL E28476; UL Recognized
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Max. Temp.
105°C
Material
Glass-Filled Polyester
Connector Type
Header
Features
Shrouded
Green Environmental Attribute
Halogen Free
Hole Center to Center
0.149 in
Contact Finish
Tin Plated
Number of Rows
2
Current Rating
9.5 A
For Use With
Receptacle Housing
Number of Contacts
6
Contact Type
Tab
Terminal Type
Through Hole - Solder
Connector Terminates To
Printed Circuit Board
Flammability Rating
UL 94 V-0
Terminal Finish
Tin Plated
