  11. 3P STRAIGHT SIDE ENTRY 3.5MM
This item is Discontinued.

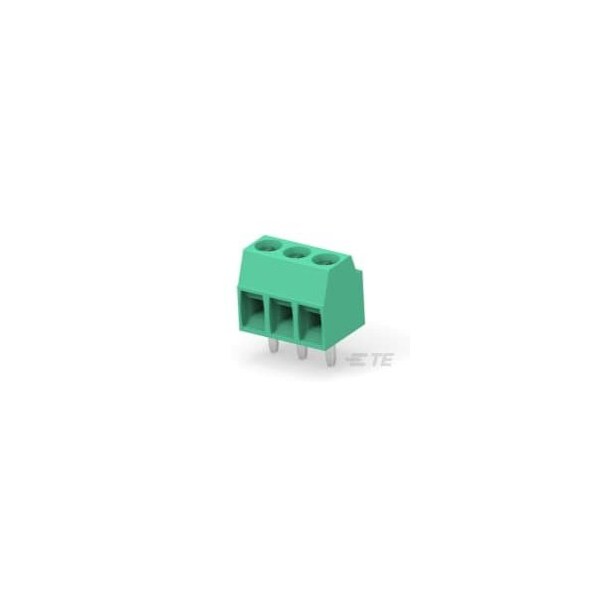

Te Connectivity 3P STRAIGHT SIDE ENTRY 3.5MM 1546551-3

3P STRAIGHT SIDE ENTRY 3.5MM (Discontinued)

  • Mfr # 1546551-3
  • Zoro # G901037676
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1546551-3
Zoro #
G901037676
UPC #
-
Country of Origin
Italy

Dimensions

PCB Tail Length
.138 in
Screw Size
M2

Details

Housing Color
Green
Voltage
300 VAC
Wire Protection
With
Operating Temperature Range
-40 to 110°C
Screwless Terminal Block
No
Contact Current Rating (Max)
12A
Number of Rows
1
Wire Entry Angle
Side
Wire Range
28 to 16 AWG
Connector Mounting Type
Board Mount
Circuit Application
Power & Signal
Current Rating (Max)
12A
Contact Mating Area Plating Material
Tin
Connector & Contact Terminates To
Printed Circuit Board
Connector Style
Header
Closed End
With
Contact Base Material
Copper Alloy
Block Type
Straight
Interlock
Without
Side Stackable
Yes
Mounting Angle
Vertical
Contact Mount
Through Hole
Threaded Flange
Without
Housing Material
PA 66
Centerline (Pitch)
.138 in
Stacked Levels
Without
Screw Material
Copper Alloy
Screw Flange
With
Screw Plating Material
Nickel
Number of Positions
3
Connector System
Wire-to-Board
