  11. 3PCR-05-006=3PCR-ASSY

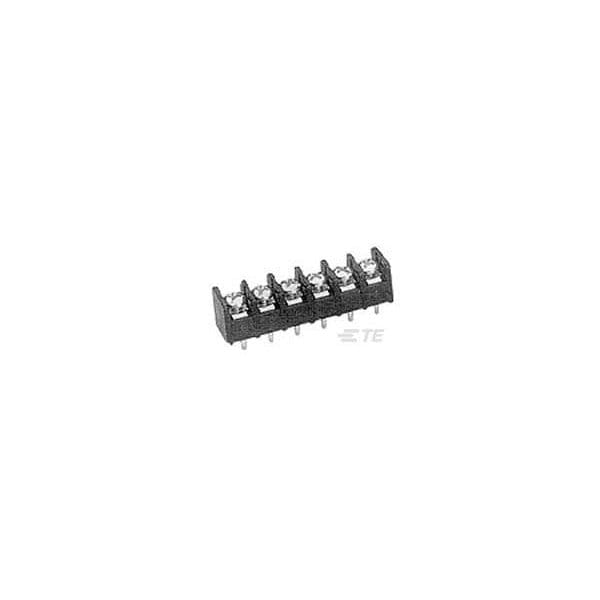

Te Connectivity 3PCR-05-006=3PCR-ASSY 1437646-9 - main

3PCR-05-006=3PCR-ASSY

  • Mfr # 1437646-9

  • Zoro # G200982820

product price: $3.15
/ea
Sold in multiples of 27 for $85.05

Key Features

Length
1.32 in
Voltage
300 V
Color
Black
Housing Material
Thermoplastic
Centerline (Pitch)
.25 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1437646-9
Zoro #
G200982820
UPC #
-
Country of Origin
United States

Dimensions

Length
1.32 in
Screw Size
M3

Details

Voltage
300 V
Color
Black
Housing Material
Thermoplastic
Centerline (Pitch)
.25 in
Terminal Material
Copper Alloy
Top Hardware
Wire Clamp Combo Head
Screw Head Type
Combo Phil-Slot
Screw Plating Material
Zinc
Mounting Angle
Right Angle
Mounting Insert
Without
UL Flammability Rating
UL 94V-0
Terminal Plating Finish
Bright
Product Type
Barrier Strip
Number of Positions
5
Connector & Contact Terminates To
Printed Circuit Board
Current Rating
1A
Mounting Options
None
Wire Range
30 to 16 AWG
Number of Rows
1
Barrier Strip Style
Tri-Barrier
Screw Material
Steel
Terminal Plating Material
Tin
Bottom Termination Style
Printed Circuit
Mounting Ears
Without
Block Style
Open Bottom with Standoffs
Current Rating (Max)
1A
Number of Levels
1
