Shop TE CONNECTIVITY

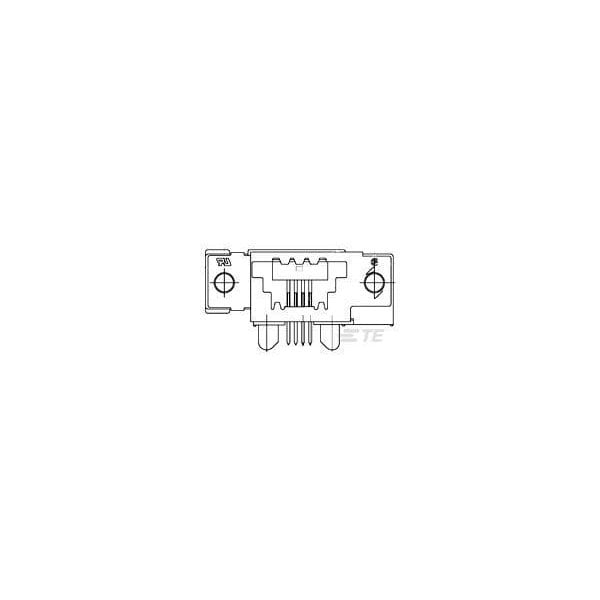

4 SDL SE O-S RCPT ASSY

  • Mfr # 1-1761186-1
  • Zoro # G701037210
product price:
$
5.15
/ea
Sold in multiples of 30 for $154.50

Key Features

Number of Positions
4
Circuit Application
Signal
Contact Base Material
Phosphor Bronze
Shield Material
Brass
Product Type
Connector
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1-1761186-1
Zoro #
G701037210
UPC #
-
Country of Origin
China

Dimensions

Contact Mating Area Plating Thickness
50µin

Details

Number of Positions
4
Circuit Application
Signal
Contact Base Material
Phosphor Bronze
Shield Material
Brass
Product Type
Connector
Connector System
Cable-to-Board
UL Flammability Rating
UL 94V-0
Keying
A
Housing Material
Polyester GF
Connector & Contact Terminates To
Printed Circuit Board
Contact Mating Area Plating Material
Gold
Shield Plating Material
Tin over Nickel
Grounding Options
Panel Ground
PCB Mount Retention
With
Connector Style
Receptacle
Housing Color
Black
Contact Current Rating (Max)
1.5 A
Centerline (Pitch)
.05 in
Number of Conductors
4
Housing Entry Style
Side
PCB Mount Retention Type
Mounting Hole
Connector Mounting Type
Board Mount
Receptacle Configuration
Offset Flange
Operating Temperature Range
-4 to 176°F
