  11. 40 DIP PLUG 100CL LEAD FREE
This item is Discontinued.

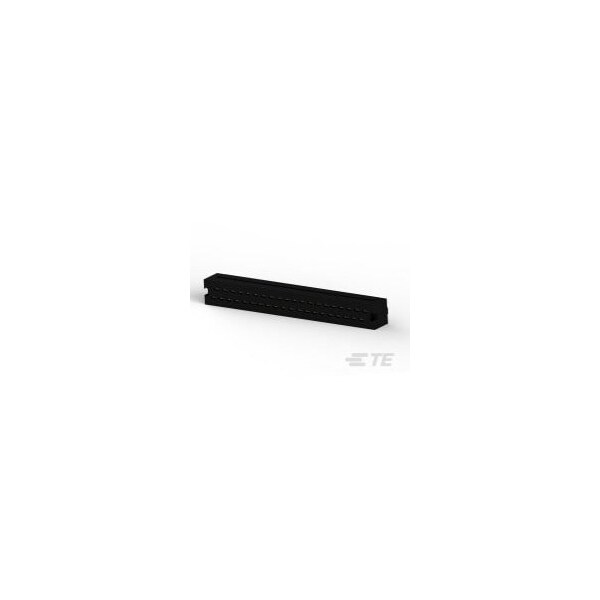

Te Connectivity 40 DIP PLUG 100CL LEAD FREE 1-746610-9

40 DIP PLUG 100CL LEAD FREE (Discontinued)

  • Mfr # 1-746610-9
  • Zoro # G900945088
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1-746610-9
Zoro #
G900945088
UPC #
-
Country of Origin
China

Dimensions

Min. Single Wire Size
30 AWG
Width
0.278 in
Height
6.43 mm
Max. Single Wire Size
26 AWG
Length
55.37 mm
Max. Insulation Dia.
0.042 in
Contact Plating Thickness
2.54 µm
For Minimum Wire Size - Solid
30 AWG
Maximum Single Wire Size
26 AWG
Minimum Single Wire Size
30 AWG

Details

Item
Connector
Type
Plug
Color
Black
Insulation Material
Thermoplastic
Max. Voltage
250V AC
Maximum Voltage
250 V AC
Application
Signal
Current
1 A
Standards
CSA Certified; UL E28476; UL Recognized
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Terminal Type
Through Hole - Solder; Insulation Displacement Crimp
Connection Material
Phosphor Bronze
Material
Thermoplastic
Wire Type
Solid or Stranded
Connector Type
Plug
Hole Center to Center
2.54 mm
Max. Temp.
105°C
Contact Type
Pin
Current Rating
1 A
Number of Rows
2
Number of Contacts
40
Flammability Rating
UL 94 V-0
Connector Terminates To
Printed Circuit Board
