  5. 40 NOVO MIL/CTR 30DP LEAD FREE

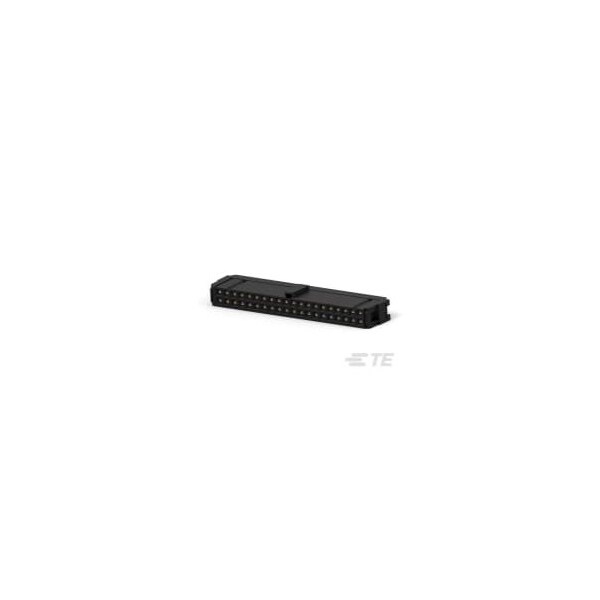

Te Connectivity 40 NOVO MIL/CTR 30DP LEAD FREE 1658622-9 - main

40 NOVO MIL/CTR 30DP LEAD FREE

  • Mfr # 1658622-9

  • Zoro # G301041204

product price:  $2.69
/ea
Sold in multiples of 50 for $134.50

Key Features

Number of Rows
2
Height
15.16 mm
Standards
CSA Certified; UL E28476; UL Recognized
Material
Thermoplastic
Length
55.37 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1658622-9
Zoro #
G301041204
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Height
15.16 mm
Length
55.37 mm
Width
0.2949 in
Max. Single Wire Size
26 AWG
Max. Insulation Dia.
0.037 in
Min. Single Wire Size
28 AWG
Contact Plating Thickness
0.76 µm

Details

Item
Connector
Number of Rows
2
Standards
CSA Certified; UL E28476; UL Recognized
Material
Thermoplastic
Color
Black
Application
Signal
Connection Material
Phosphor Bronze
Max. Temp.
105°C
Current Rating
1 A
Terminal Type
Through Hole - Solder; Insulation Displacement Crimp
Flammability Rating
UL 94 V-0
Hole Center to Center
2.54 mm
Max. Voltage
250V AC
Connector Type
Receptacle
Connector Terminates To
Wire & Cable
Terminal Finish
Tin Plated
Contact Type
Socket
Number of Contacts
40
