Contact our U.S. based teamSpecifications
Product Information
MFR #
5-104550-5
Zoro #
G901043219
UPC #
-
Country of Origin
Mexico
Dimensions
Height
9.398 mm
Contact Plating Thickness
0.762 µm
Details
Item

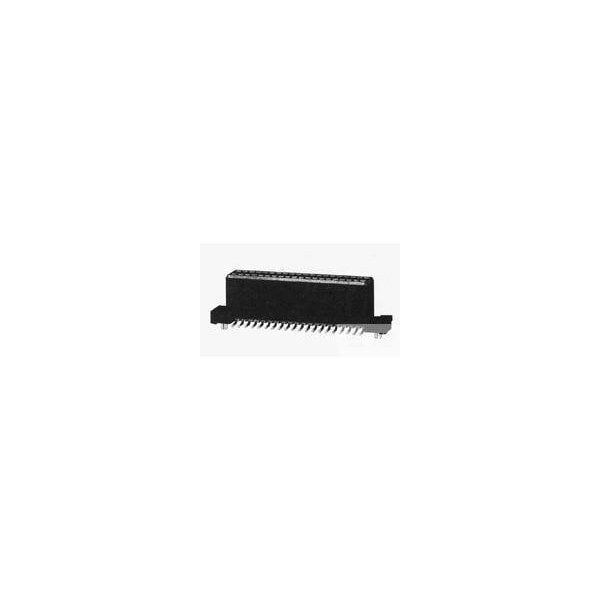

PCB Mount Receptacle
Max. Voltage
30V AC
Max. Temp.
105°C
Series
AMPMODU
Standards
UL E28476; CSA LR7189
For Use With
Plug Assembly
Material
Thermoplastic
Color
Black
Terminal Finish
Tin Plated
Flammability Rating
UL 94 V-0
Number of Rows
2
Contact Finish
Gold Plated
Connection Material
Phosphor Bronze
Terminal Type
Surface Mount
Contact Type
Socket
Hole Center to Center
1.27 mm
Connector Terminates To
Printed Circuit Board
Number of Contacts
40
