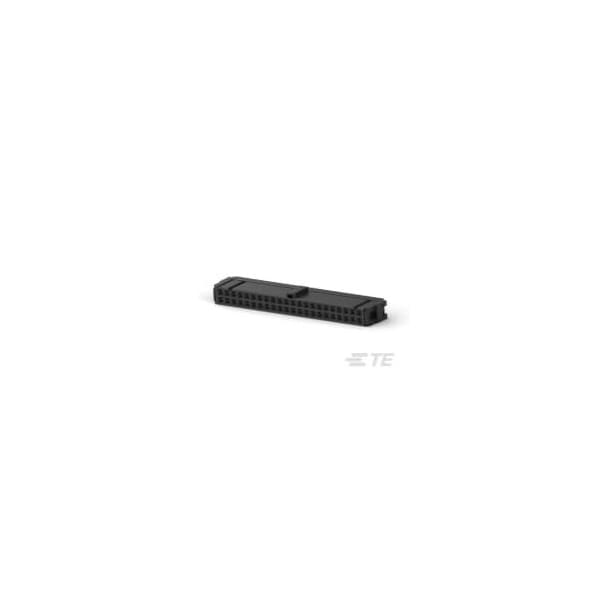

Te Connectivity 44 NOVO MIL/CTR 30DP LEAD FREE 1-1658622-3 - main

44 NOVO MIL/CTR 30DP LEAD FREE

  • Mfr # 1-1658622-3

  • Zoro # G001041931

product price:  $3.39
/ea
Sold in multiples of 50 for $169.50

Key Features

Number of Rows
2
Standards
CSA Certified; UL E28476; UL Recognized
Length
60.45 mm
Height
15.16 mm
Material
Thermoplastic
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1-1658622-3
Zoro #
G001041931
UPC #
-
Country of Origin
China

Dimensions

Length
60.45 mm
Height
15.16 mm
Width
0.2949 in
Max. Insulation Dia.
0.94 mm
Min. Single Wire Size
28 AWG
Max. Single Wire Size
26 AWG
Contact Plating Thickness
0.76 µm

Details

Item
Connector
Number of Rows
2
Standards
CSA Certified; UL E28476; UL Recognized
Material
Thermoplastic
Color
Black
Application
Signal
Number of Contacts
44
Max. Voltage
250V AC
Current Rating
1 A
Connection Material
Phosphor Bronze
Hole Center to Center
2.54 mm
Contact Type
Socket
Connector Terminates To
Wire & Cable
Connector Type
Receptacle
Terminal Type
Through Hole - Solder; Insulation Displacement Crimp
Terminal Finish
Tin Plated
Max. Temp.
105°C
Flammability Rating
UL 94 V-0
