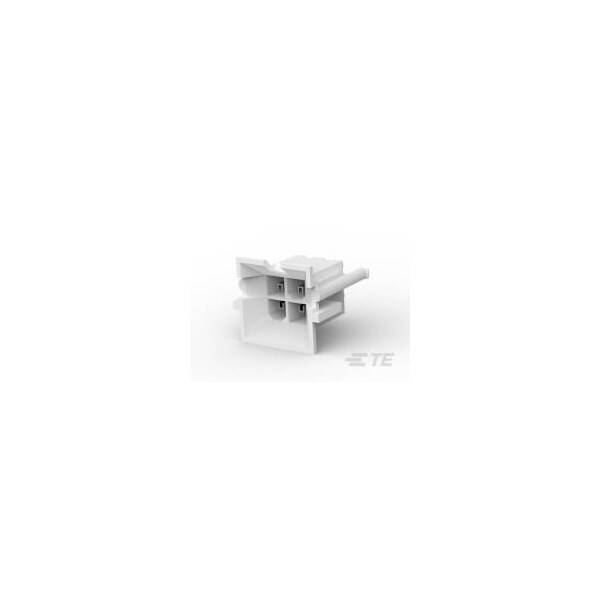

Te Connectivity 4P VAL-U-LOK BMI VRT HDR V2 1586585-4 - main

4P VAL-U-LOK BMI VRT HDR V2

  • Mfr # 1586585-4

  • Zoro # G000937679

product price:  $0.51
/ea
Sold in multiples of 200 for $102.00

Key Features

Type
Header
Wire Connector Style
Square Grid
Color
Natural
Min. Single Wire Size
26 AWG
Insulation Material
Nylon
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1586585-4
Zoro #
G000937679
UPC #
-
Country of Origin
China

Dimensions

Min. Single Wire Size
26 AWG
Width
0.59 in
Height
14.1 mm
Max. Insulation Dia.
3.1 mm
Max. Single Wire Size
18 AWG
Length
0.591 in
Maximum Single Wire Size
18 AWG
Minimum Single Wire Size
26 AWG

Details

Item
Connector
Type
Header
Wire Connector Style
Square Grid
Color
Natural
Insulation Material
Nylon
Max. Voltage
600V AC
Maximum Voltage
600 V AC
Application
Power
Current
9 A
Standards
CSA Certified; UL E28476; UL Recognized
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-2
Connector Type
Header
Max. Temp.
105°C
Green Environmental Attribute
Halogen Free
Hole Center to Center
4.19 mm
Features
Circuit Identification Feature; Shrouded
Material
Nylon
Terminal Type
Through Hole - Solder
Contact Finish
Tin Plated
Contact Type
Pin
Number of Rows
2
Number of Contacts
4
Current Rating
9 A
Connector Terminates To
Printed Circuit Board
Terminal Finish
Brass Plated
Flammability Rating
UL 94 V-2
Termination Style
Through Hole - Solder

Description
