  11. 4P VERT HDR VAL-U-LOK V2
This item is Discontinued.

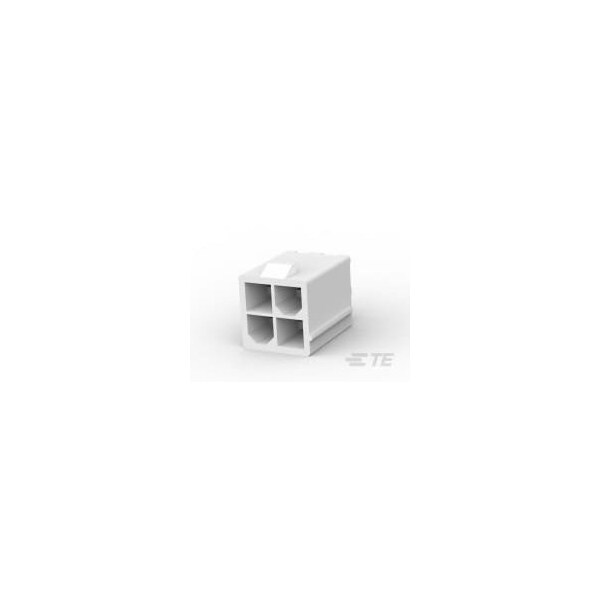

Te Connectivity 4P VERT HDR VAL-U-LOK V2 1586037-4

4P VERT HDR VAL-U-LOK V2 (Discontinued)

  • Mfr # 1586037-4
  • Zoro # G400939174
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1586037-4
Zoro #
G400939174
UPC #
-
Country of Origin
China

Dimensions

Width
0.384 in
Height
12.8 mm
Max. Insulation Dia.
0.122 in
Length
9.6 mm
Contact Plating Thickness
2.03 to 5.08 µm

Details

Item
Header
Color
Natural
Insulation Material
Nylon
Max. Voltage
600V AC
Maximum Voltage
600 V AC
Application
Power
Current
9 A
Standards
CSA Certified; UL E28476; UL Recognized
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-2
Terminal Type
Through Hole - Solder
Max. Temp.
105°C
Hole Center to Center
4.2 mm
Features
Circuit Identification Feature; Shrouded
Material
Nylon
Contact Finish
Tin Plated
Current Rating
9 A
Number of Rows
2
Number of Contacts
4
Contact Type
Pin
Terminal Finish
Tin Plated
Connector Terminates To
Printed Circuit Board
Flammability Rating
UL 94 V-2
