Product Information

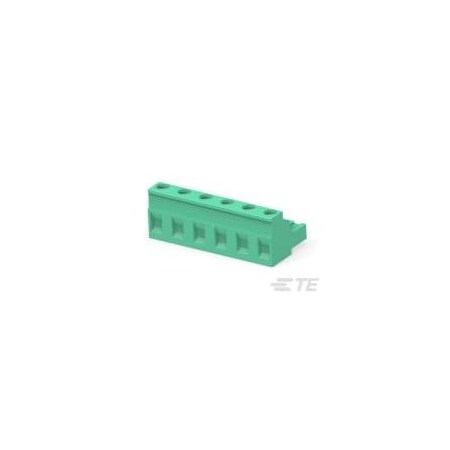

MFR #
796981-6
Zoro #
G800930061
UPC #
-
Country of Origin
Italy
Dimensions
Screw Size
M3
Details
Mounting Angle
Right Angle
Interlock
Without
Screw Material
Brass
Number of Positions
6
Contact Mating Area Plating Material
Tin
Number of Rows
1
Centerline
7.62 mm [ .3 in ]
Contact Base Material
Phosphor Bronze
Current Rating (Max) (A)
15
Housing Color
Green
Wire Entry Angle
Side
Shrouded
No
Block Type
Stacking
Housing Material
Polyamide 6.6 GF
Screw Plating Material
Nickel
Wire Range
.05 to 3 mm² [ 30 to 12 AWG ]
Screw Flange
Without
Screwless Terminal Block
No
Voltage (VAC)
300
Applies To
Wire/Cable
Connector Style
Plug
Side Stackable
Yes
