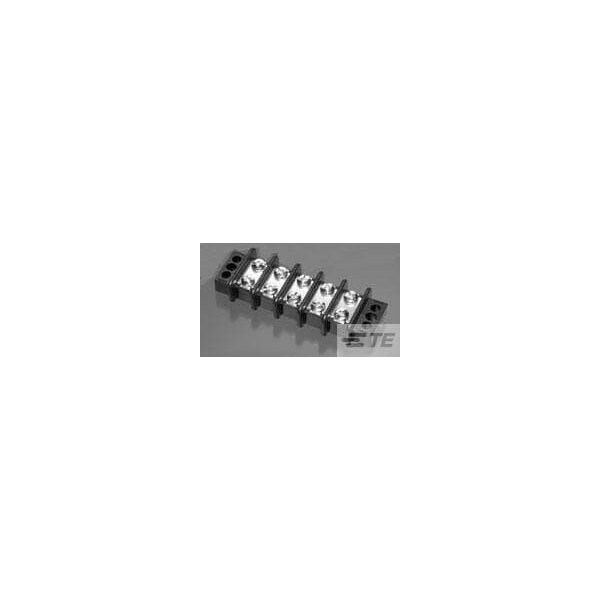

Te Connectivity 6P .563 DR 600V 1776544-6 - main

6P .563 DR 600V

  • Mfr # 1776544-6

  • Zoro # G001052777

product price:  $5.69
/ea
Sold in multiples of 50 for $284.50

Key Features

Length
4.38 in
Color
Black
Voltage
600 V
Connector Mounting Type
Panel
Mounting Options
End Mounting Ears
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1776544-6
Zoro #
G001052777
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Length
4.38 in
Screw Size
11902

Details

Color
Black
Voltage
600 V
Connector Mounting Type
Panel
Mounting Options
End Mounting Ears
Number of Positions
6
Number of Levels
1
Screw Head Type
Combo Phil-Slot
Screw Material
Steel
Block Style
Flat
Operating Temperature Range
-40 to 248 °F
Number of Rows
2
Current Rating
30 A
Terminal Material
Brass
Wire Range
22 to 10 AWG
Bottom Termination Style
Quick Connects
Mounting Ears
With
Terminal Plating Material
Tin
Centerline (Pitch)
.563 in
Barrier Strip Style
Dual Barrier
Top Hardware
Wire Clamp Combo Head
Screw Plating Material
Nickel
UL Flammability Rating
UL 94V-0
Mounting Angle
Vertical
Product Type
Barrier Strip
Mounting Insert
Without
Current Rating (Max)
30 A
Housing Material
PBT
