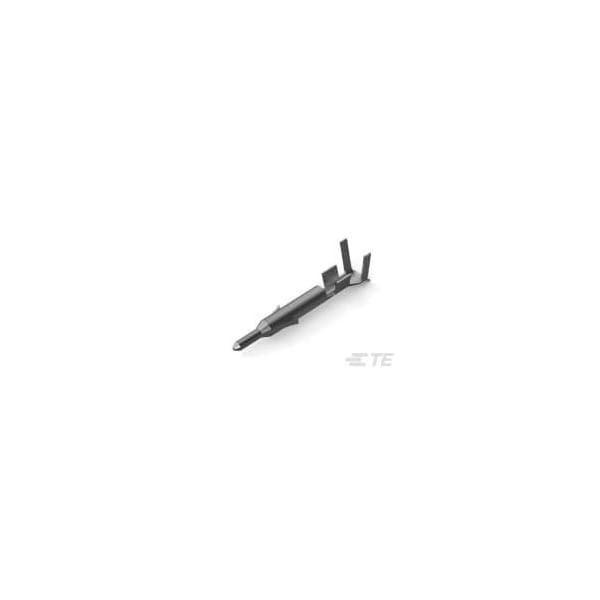

770987-1
- Mfr # 770987-1
- Zoro # G801048604
product price:Â
$
0.19
/ea
Sold in multiples of 1000 for
$190.00
Key Features
For Use With
Plug or Cap Housing
Termination Type
Crimp
Agency/Standard
UL, CSA
CSA Rating
Certified
Operating Temperature Range
-55 to 105 °C
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 770987-1
- Zoro #
- G801048604
- UPC #
- -
- Country of Origin
- United States
- For Use With
- Plug or Cap Housing
- Termination Type
- Crimp
- Agency/Standard
- UL, CSA
- CSA Rating
- Certified
- Operating Temperature Range
- -55 to 105 °C
- Contact Angle
- Straight
- Contact Current Rating (Max)
- 9.5 A
- Connector & Contact Terminates To
- Wire & Cable
- Contact Base Material
- Brass
- Contact Type
- Pin
- Contact Retention in Housing
- With
- Product Type
- Contact
- Connector Mounting Type
- Cable Mount
- Contact Mating Area Plating Material
- Pre-Tin
- Wire Contact Termination Area Plating Material
- Pre-Tin
- UL Rating
- Recognized
- Circuit Application
- Power
- Wire/Cable Type
- Discrete Wire
- Connector System
- Wire-to-Wire
- Wire Insulation Support
- Without
- Wire Type
- Stranded
- Operating Voltage
- 600 VDC, 600 VAC
- Contact Termination Area Plating Material
- Pre-Tin
- Glow Wire Rating
- Standard Part - Not Glow Wire
Dimensions
- Accepts Wire Insulation Diameter Range
- .059 to .094 in
- Wire/Cable Size
- 22 to 18 AWG
- Mating Pin Diameter
- .039 in
