This item is Discontinued.

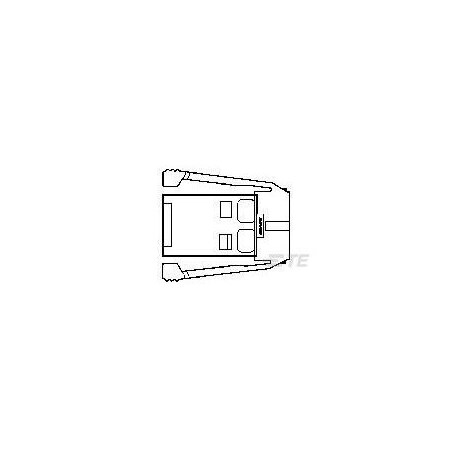

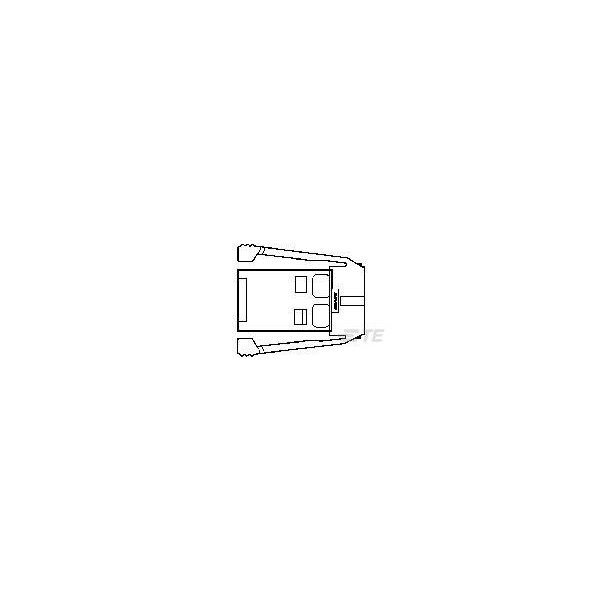

Te Connectivity 8 SDL RND PLUG ASSY 36 SERIES 1-520532-3

8 SDL RND PLUG ASSY 36 SERIES (Discontinued)

  • Mfr # 1-520532-3
  • Zoro # G800946437
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1-520532-3
Zoro #
G800946437
UPC #
-
Country of Origin
China

Dimensions

Contact Mating Area Plating Thickness
50µin
Wire Size
26 AWG, 28 AWG
Conductor Insulation Diameter
.045 to .05 in

Details

Number of Positions
8
Cable Type
Round
Shield Material
Steel
Contact Mating Area Plating Material
Gold
Connector System
Cable-to-Board
Centerline (Pitch)
.05 in
UL Flammability Rating
UL 94V-2
Circuit Application
Signal
Keying
A
Housing Color
Smoke Gray
Shield Plating Material
Tin
Contact Base Material
Copper Alloy
Product Type
Connector
Agency/Standard
CSA, UL
Shield Plating Finish
Bright
Receptacle Configuration
Standard
Housing Material
Polycarbonate GF
Connector & Contact Terminates To
Wire & Cable
Number of Conductors
8
Connector Mounting Type
Cable Mount
Connector Style
Plug
PCB Mount Retention
Without
Contact Current Rating (Max)
1.5 A
Operating Temperature Range
-4 to 176°F
