This item is Discontinued.

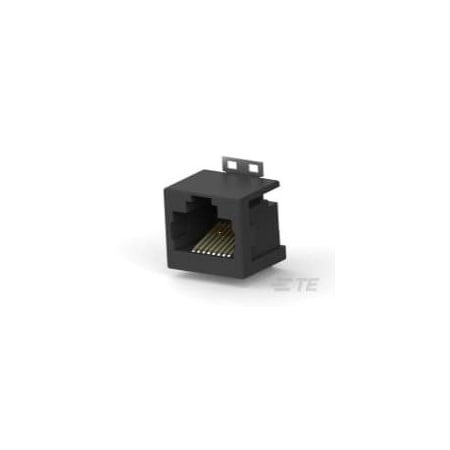

Te Connectivity 8/8 INV.MOD.JACK 1-338088-6

8/8 INV.MOD.JACK (Discontinued)

  • Mfr # 1-338088-6
  • Zoro # G600978935
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1-338088-6
Zoro #
G600978935
UPC #
-
Country of Origin
India

Dimensions

PCB Tail Length
.059 in
Contact Mating Area Plating Material Thickness
50µin
Connector Height
.5 in
PCB Thickness (Recommended)
.062 in

Details

Number of Positions
8
Shielded
No
Modular Jacks & Plugs Products
RJ Type Jacks & Plugs
Port Matrix Configuration
1 x 1
PCB Mount Orientation
Vertical
Contact Current Rating (Max)
1.5 A
Panel Mount Feature
Without
Connectors & Connector Components Type
Connector
Contact Mating Area Plating Material
Nickel
Termination Method to Printed Circuit Board
Surface Mount
Keyed
No
Housing Color
Black
Circuit Application
Signal
Status Indicator
None
Number of Contacts Loaded
8
Modular Jack & Plug Interface Type
RJ45
Grounding Options
None
Connector Mounting Type
Board Mount
Operating Temperature Range
-40 to 158°F
Entry Location
Top
Connector Style
Jack
Latch Orientation
Standard - Latch Down
Connector Product Type
Connector Assembly
Connector & Contact Terminates To
Printed Circuit Board
Profile
Standard
UL Flammability Rating
UL 94V-0
Contact Base Material
Phosphor Bronze
Connector Contact Density
Standard
Port Configuration
Single Port
PCB Contact Termination Area Plating Material
Tin
Performance Category
Cat 3
Housing Material
PA 4T GF30
Centerline (Pitch)
.04 in
