Add Tax ExemptionSpecifications
Product Information
MFR #

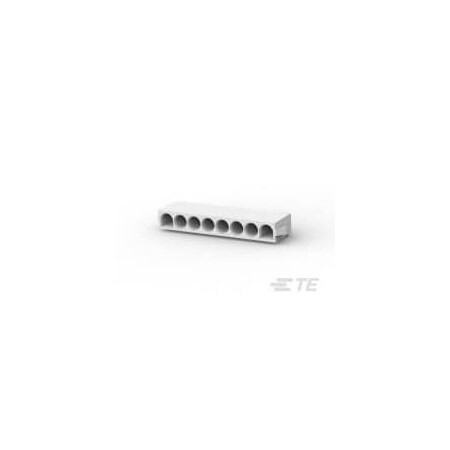

826851-3
Zoro #
G001010180
UPC #
-
Country of Origin
China
Dimensions
Contact Plating Thickness
120 to 200 µm
Details
Item
Header
Color
Natural
Insulation Material
Polyamide
Max. Voltage
600V AC
Maximum Voltage
600 V AC
Application
Power
Standards
CSA Certified; UL E28476; UL Recognized
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Max. Temp.
105°C
Material
Polyamide
For Use With
Plug Housing
Hole Center to Center
6.35 mm
Terminal Type
Through Hole - Solder
Contact Finish
Tin Plated
Contact Type
Pin
Number of Contacts
8
Number of Rows
1
Flammability Rating
UL 94 V-0
Terminal Finish
Tin Plated
Connector Terminates To
Printed Circuit Board
