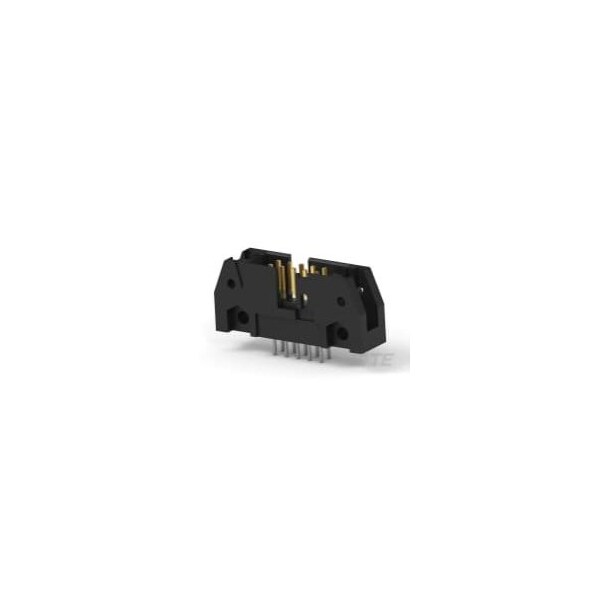

Te Connectivity A/L UNIV HDR 10P VERT 5102155-1 - main

A/L UNIV HDR 10P VERT

  • Mfr # 5102155-1

  • Zoro # G800939798

product price:  $2.19
/ea
Sold in multiples of 90 for $197.10

Key Features

Type
Header
Color
Black
Insulation Material
Nylon
Max. Voltage
250V AC
Maximum Voltage
250 V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5102155-1
Zoro #
G800939798
UPC #
-
Country of Origin
China

Dimensions

Height
13.94 mm
Length
32 mm
Contact Plating Thickness
15 µin

Details

Item
Connector
Type
Header
Color
Black
Insulation Material
Nylon
Max. Voltage
250V AC
Maximum Voltage
250 V AC
Application
Signal
Current
1 A
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Connection Material
Phosphor Bronze
Max. Temp.
105°C
Connector Type
Header
For Use With
AMP-Latch Receptacle
Material
Nylon
Terminal Type
Through Hole
Hole Center to Center
2.54 mm
Contact Finish
Gold Flash over Palladium Nickel; Gold Plated
Current Rating
1 A
Contact Type
Pin
Number of Contacts
10
Number of Rows
2
Terminal Finish
Tin Plated
Flammability Rating
UL 94 V-0
Connector Terminates To
Printed Circuit Board
