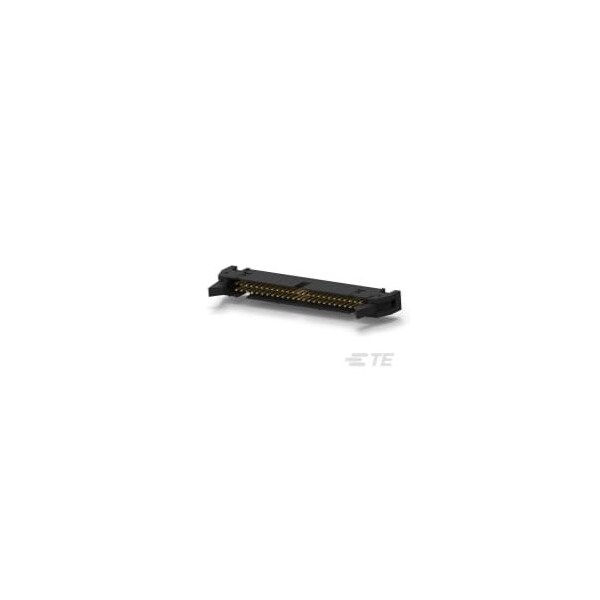

A/L UNIV HDR 50P RA SHT LAT
- Mfr # 1-5499913-0
- Zoro # G700937559
product price:Â
$
10.49
/ea
Sold in multiples of 8 for
$83.92
Key Features
Color
Black
Insulation Material
Glass-Filled Nylon/Polyester
Max. Voltage
250V AC
Maximum Voltage
250 V AC
Application
Signal
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 1-5499913-0
- Zoro #
- G700937559
- UPC #
- -
- Country of Origin
- China
- Item
- Connector
- Color
- Black
- Insulation Material
- Glass-Filled Nylon/Polyester
- Max. Voltage
- 250V AC
- Maximum Voltage
- 250 V AC
- Application
- Signal
- Current
- 1 A
- Maximum Operating Temperature
- 105 Degrees C
- UL 94 Flammability Rating
- V-0
- Features
- With Ejection Latches
- Terminal Type
- Through Hole
- Connection Material
- Brass
- Hole Center to Center
- 2.54 mm
- Connector Type
- Header
- Max. Temp.
- 105°C
- Material
- Glass-Filled Nylon/Polyester
- Number of Rows
- 2
- Contact Finish
- Gold Plated
- Contact Type
- Pin
- Number of Contacts
- 50
- Current Rating
- 1 A
- Flammability Rating
- UL 94 V-0
- Connector Terminates To
- Printed Circuit Board
- Terminal Finish
- Tin Plated
Dimensions
- Height
- 13.94 mm
- Length
- 3.26 in
- Contact Plating Thickness
- 15 µin
