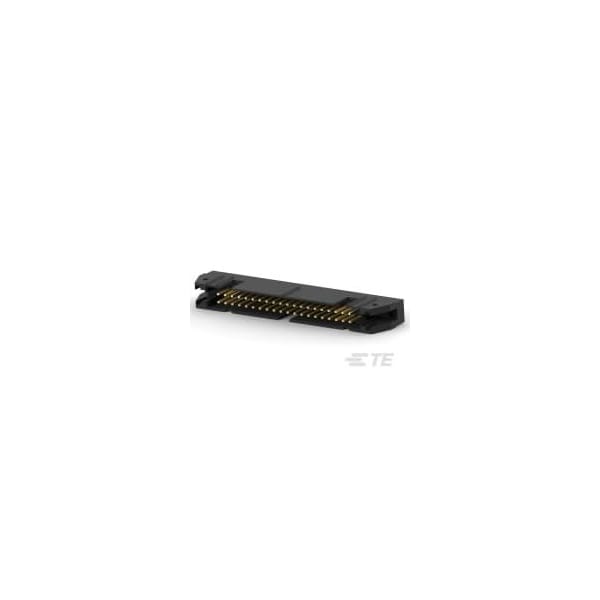

Te Connectivity AMP-LATCH UNV HDR 40 POSN VERT 1658694-3 - main

AMP-LATCH UNV HDR 40 POSN VERT

  • Mfr # 1658694-3

  • Zoro # G800938678

product price:  $7.15
/ea
Sold in multiples of 11 for $78.65

Key Features

Type
Header
Color
Black
Insulation Material
Nylon
Application
Signal
Current
1 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1658694-3
Zoro #
G800938678
UPC #
-
Country of Origin
China

Dimensions

Height
13.94 mm
Length
70.1 mm
Contact Plating Thickness
30 µin

Details

Item
Connector
Type
Header
Color
Black
Insulation Material
Nylon
Application
Signal
Current
1 A
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Max. Temp.
105°C
Terminal Type
Through Hole - Press-Fit
For Use With
AMP-Latch Receptacle
Connector Type
Header
Material
Nylon
Connection Material
Phosphor Bronze
Hole Center to Center
2.54 mm
Current Rating
1 A
Contact Finish
Gold Flash over Palladium Nickel
Number of Contacts
40
Contact Type
Pin
Number of Rows
2
Terminal Finish
Tin Plated
Flammability Rating
UL 94 V-0
Connector Terminates To
Printed Circuit Board

Description
