This item is Discontinued.

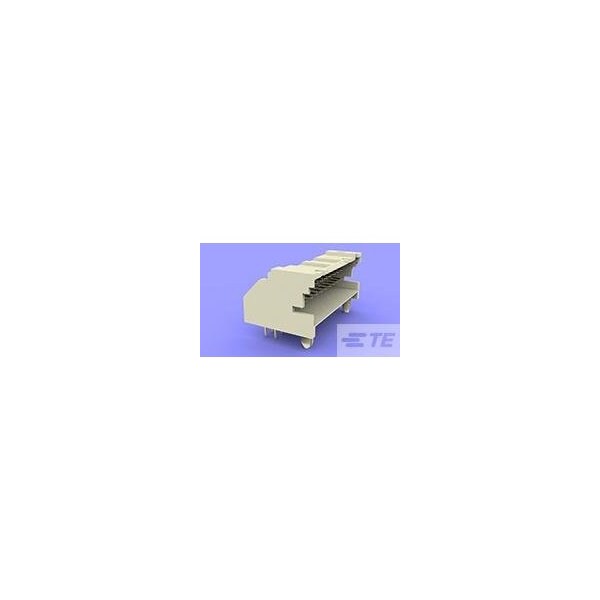

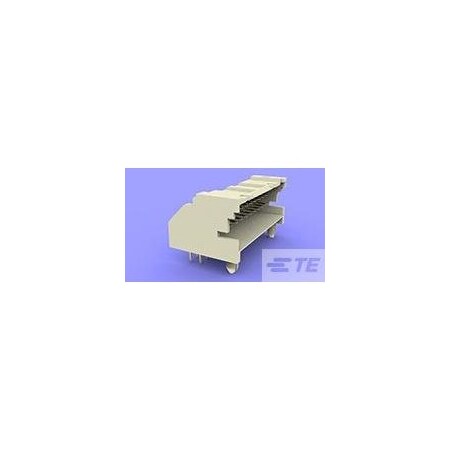

Te Connectivity ASSY HDR RIGHT ANGLE GWT DUAL ROW EP2.5 1-1969574-4

ASSY HDR RIGHT ANGLE GWT DUAL ROW EP2.5 (Discontinued)

  • Mfr # 1-1969574-4
  • Zoro # G300937065
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1-1969574-4
Zoro #
G300937065
UPC #
-
Country of Origin
China

Dimensions

Width
0.4 in
Height
0.479 in
Length
20.39 mm
Contact Plating Thickness
2.032 µm

Details

Item
Connector
Color
Natural
Insulation Material
Nylon
Max. Voltage
250V AC
Maximum Voltage
250 V AC
Current
7.5 A
Standards
UL 94 V-0
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Max. Temp.
105°C
Features
Shrouded
Terminal Type
Through Hole - Solder
Hole Center to Center
2.5 mm
For Use With
Connector/Cable Assembly
Connection Material
Brass
Connector Type
Header
Material
Nylon
Number of Rows
2
Current Rating
7.5 A
Contact Type
Pin
Number of Contacts
14
Contact Finish
Tin Plated
Terminal Finish
Tin Plated
Flammability Rating
UL 94 V-0
