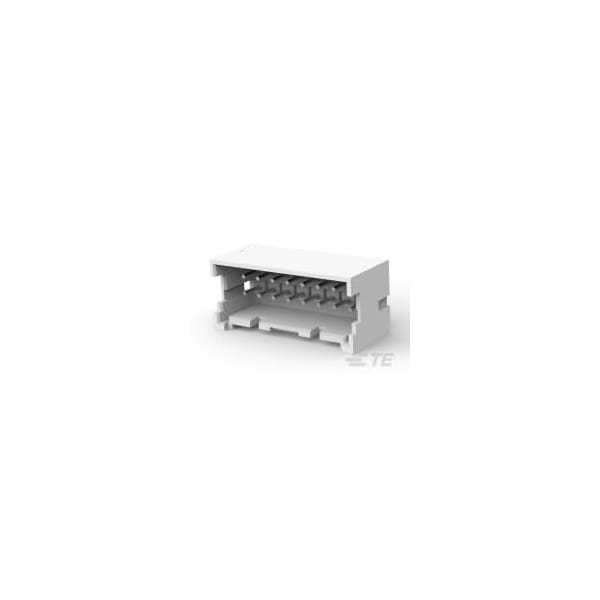

ASSY HDR VERT BOSSED DUAL ROW EP2.5
- Mfr # 1-1969543-6
- Zoro # G800937015
product price:Â
$
0.95
/ea
Sold in multiples of 104 for
$98.80
Key Features
Color
White
Min. Single Wire Size
26 AWG
Max. Voltage
250V AC
Maximum Voltage
250 V AC
Current
7.5 A
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 1-1969543-6
- Zoro #
- G800937015
- UPC #
- -
- Country of Origin
- China
- Item
- Connector
- Color
- White
- Max. Voltage
- 250V AC
- Maximum Voltage
- 250 V AC
- Current
- 7.5 A
- Maximum Operating Temperature
- 105 Degrees C
- UL 94 Flammability Rating
- V-0
- Hole Center to Center
- 2.5 mm
- Connection Material
- Brass
- Material
- Nylon
- Connector Type
- Header
- For Use With
- Receptacle Assembly
- Features
- Shrouded
- Max. Temp.
- 105°C
- Terminal Type
- Through Hole - Solder
- Contact Type
- Pin
- Contact Finish
- Tin Plated
- Number of Contacts
- 16
- Number of Rows
- 2
- Current Rating
- 7.5 A
- Terminal Finish
- Tin Plated
- Flammability Rating
- UL 94 V-0
Dimensions
- Min. Single Wire Size
- 26 AWG
- Width
- 0.4 in
- Height
- 0.386 in
- Max. Single Wire Size
- 20 AWG
- Length
- 22.89 mm
- Maximum Single Wire Size
- 20 AWG
- Minimum Single Wire Size
- 26 AWG
