  11. Barrier Strip, 2 Row, 25 A, 300 V, 14 AWG, Pin Termination

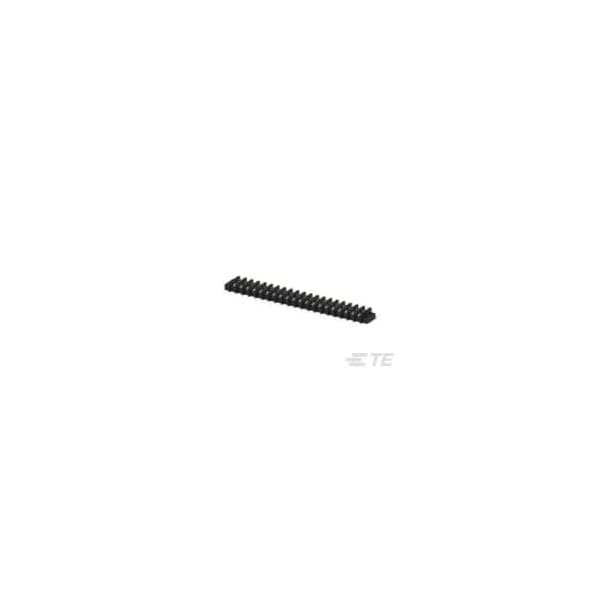

Te Connectivity Barrier Strip, 2 Row, 25 A, 300 V, 14 AWG, Pin Termination 2-1546670-0 - main

Barrier Strip, 2 Row, 25 A, 300 V, 14 AWG, Pin Termination

  • Mfr # 2-1546670-0

  • Zoro # G100973775

product price: $7.95
/ea
Sold in multiples of 9 for $71.55

Key Features

Number of Rows
2
Termination Style
Pin
Current
25 A
Maximum Voltage
300 V
Center Spacing
0.4375 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2-1546670-0
Zoro #
G100973775
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

For Minimum Wire Size
22 AWG
For Maximum Wire Size
14 AWG
Overall Length
9.49 in
Screw Size
6-32

Details

Item
Barrier Strip
Number of Rows
2
Termination Style
Pin
Current
25 A
Maximum Voltage
300 V
Center Spacing
0.4375 in
Color
Black
Mounting Angle
Vertical
Operating Temperature Range
-40 to 120°C
Terminal Material
Brass
Housing Material
Thermoplastic
Connector & Contact Terminates To
Printed Circuit Board
Number of Positions
20
Mounting Insert
Without
Number of Levels
1
Screw Material
Steel
Barrier Strip Style
Dual Barrier
Screw Plating Material
Nickel
UL Flammability Rating
UL 94V-0
Top Hardware
Wire Clamp Combo Head
Block Style
Flat
Terminal Plating Material
Tin
Mounting Options
End Mounting Ears
