  11. Board Connector, 10 Contact(S), 2 Row(S), Female, 0.1 Inch Pitch, Idc Terminal, Locking, Black

This item is Discontinued.

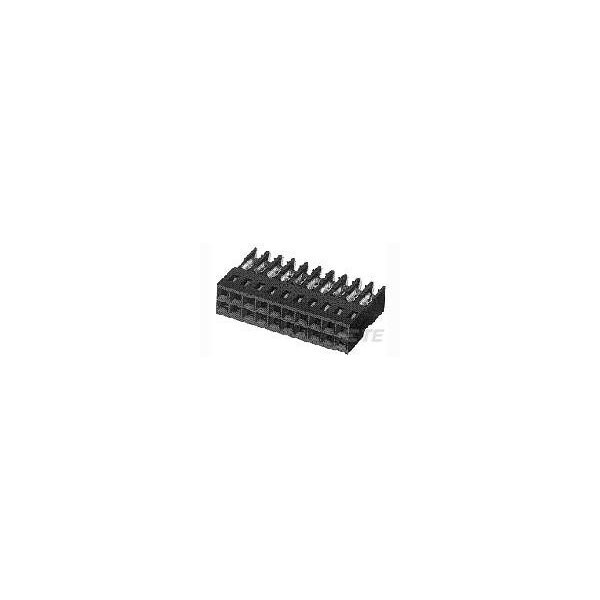

Te Connectivity Board Connector, 10 Contact(S), 2 Row(S), Female, 0.1 Inch Pitch, Idc Terminal, Locking, Black 5-102398-3

Board Connector, 10 Contact(S), 2 Row(S), Female, 0.1 Inch Pitch, Idc Terminal, Locking, Black (Discontinued)

  • Mfr # 5-102398-3
  • Zoro # G505892541
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5-102398-3
Zoro #
G505892541
UPC #
-
Country of Origin
Mexico

Dimensions

Max. Single Wire Size
22 AWG
Min. Single Wire Size
26 AWG
Height
6.1 mm
Length
12.7 mm
Max. Insulation Dia.
0.05 in

Details

Item
Connector
Max. Temp.
105°C
Standards
CSA LR7189; UL E28476
Color
Black
Hole Center to Center
2.54 mm
Connection Material
Copper Alloy
Terminal Type
Insulation Displacement Crimp
Material
PBT
Features
Stamped
Connector Type
Receptacle
Flammability Rating
UL 94 V-0
Terminal Finish
Tin Plated
Current Rating
3 A
Number of Rows
2
Number of Contacts
10
Connector Terminates To
Wire & Cable
Contact Type
Socket

Description

Board Connector, 10 Contact(S), 2 Row(S), Female, 0.1 Inch Pitch, Idc Terminal, Locking, Black Insulator, Receptacle
