  11. Board Connector, 12 Contact(S), 1 Row(S), Female, 0.156 Inch Pitch, Idc Terminal, Locking, Yellow

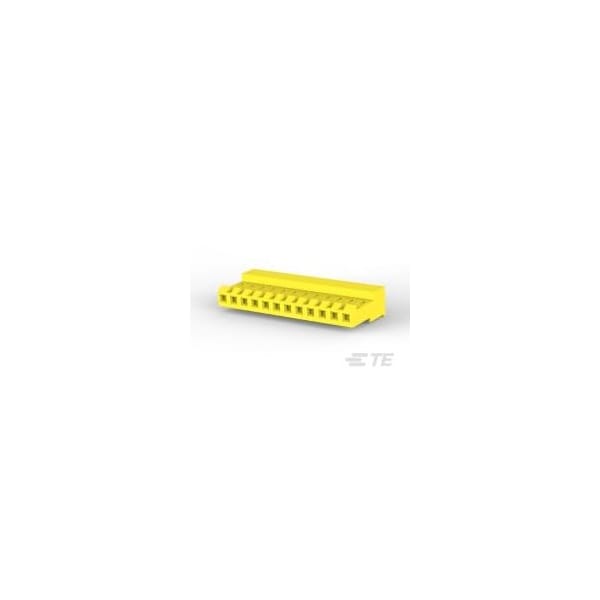

Te Connectivity Board Connector, 12 Contact(S), 1 Row(S), Female, 0.156 Inch Pitch, Idc Terminal, Locking, Yellow 4-640427-2 - main

Board Connector, 12 Contact(S), 1 Row(S), Female, 0.156 Inch Pitch, Idc Terminal, Locking, Yellow

  • Mfr # 4-640427-2

  • Zoro # G905893339

product price: $1.29
/ea
Sold in multiples of 64 for $82.56

Key Features

Wire Range
20 AWG
Max. Voltage
600V AC
Max. Temp.
105°C
Application
Power
Standards
CSA Certified; UL E28476; UL Recognized
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4-640427-2
Zoro #
G905893339
UPC #
-
Country of Origin
China

Dimensions

Length
55.47 mm
Height
9.02 mm
Max. Insulation Dia.
2.41 mm
Contact Plating Thickness
2.03 to 5.08 µm

Details

Item
Connector Assembly
Wire Range
20 AWG
Max. Voltage
600V AC
Max. Temp.
105°C
Application
Power
Standards
CSA Certified; UL E28476; UL Recognized
Connection Material
Copper Alloy
Material
Nylon
Hole Center to Center
3.96 mm
Wire Type
Discrete; Stranded
Terminal Type
Insulation Displacement Crimp
Color
Yellow
For Use With
MTA .156 Header
Current Rating
7 A
Terminal Finish
Tin Plated
Flammability Rating
UL 94 V-2
Contact Type
Socket
Contact Finish
Matte Tin Plated
Connector Terminates To
Printed Circuit Board; Wire & Cable
Number of Contacts
12
Number of Rows
1

Description

Board Connector, 12 Contact(S), 1 Row(S), Female, 0.156 Inch Pitch, Idc Terminal, Locking, Yellow Insulator, Receptacle
