Shop TE CONNECTIVITY

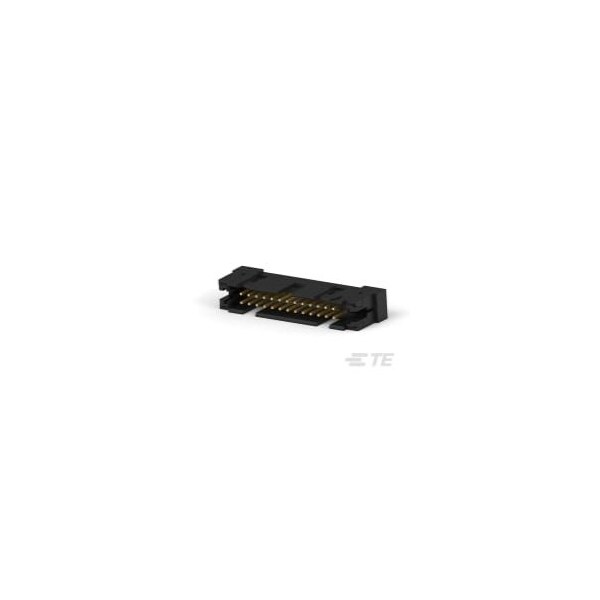

Board Connector, 2 Row(S), Male, Straight, Solder Terminal, Black Insulator, Plug

  • Mfr # 2-111446-0

  • Zoro # G805790141

product price:  $10.75
/ea
Sold in multiples of 7 for $75.25

Key Features

Type
Plug
Color
Black
Min. Single Wire Size
28 AWG
Insulation Material
Thermoplastic
Max. Voltage
250V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2-111446-0
Zoro #
G805790141
UPC #
-
Country of Origin
China

Dimensions

Min. Single Wire Size
28 AWG
Width
0.3299 in
Height
14.48 mm
Length
1.87 in
Max. Single Wire Size
26 AWG
Max. Insulation Dia.
0.0381 in
Contact Plating Thickness
0.76 µm
Maximum Single Wire Size
26 AWG
For Minimum Wire Size - Solid
28 AWG
Minimum Single Wire Size
28 AWG

Details

Item
Connector
Type
Plug
Color
Black
Insulation Material
Thermoplastic
Max. Voltage
250V AC
Maximum Voltage
250 V AC
Application
Signal
Current
1 A
Standards
CSA Certified; UL E28476; UL Recognized
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Connector Type
Plug
Material
Thermoplastic
Terminal Type
Through Hole - Solder; Insulation Displacement Crimp
Connection Material
Phosphor Bronze
Current Rating
1 A
Max. Temp.
105°C
Wire Type
Solid or Stranded
Number of Rows
2
Features
Shrouded
Contact Type
Pin
Number of Contacts
26
Hole Center to Center
2.54 mm
Flammability Rating
UL 94 V-0
Connector Terminates To
Wire & Cable
Termination Style
Through Hole - Solder; Insulation Displacement Crimp
