  11. Board Connector, 20 Contact(S), 2 Row(S), Male, Straight, 0.1 Inch Pitch, Solder Terminal, Locking,

This item is Discontinued.

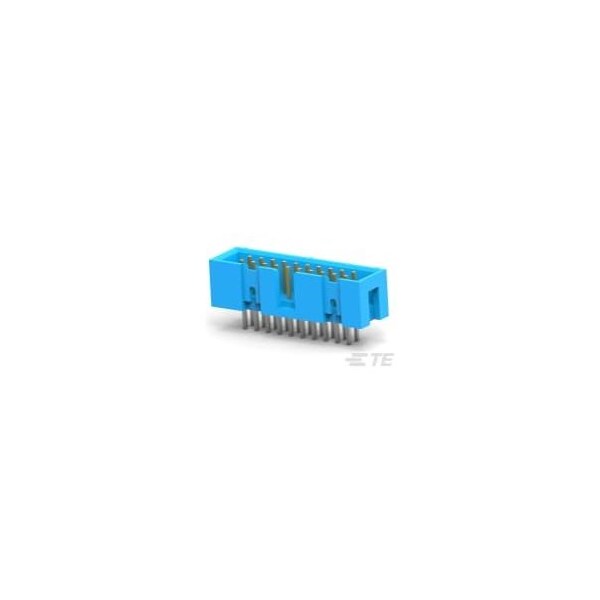

Te Connectivity Board Connector, 20 Contact(S), 2 Row(S), Male, Straight, 0.1 Inch Pitch, Solder Terminal, Locking, 2-1761679-7

Board Connector, 20 Contact(S), 2 Row(S), Male, Straight, 0.1 Inch Pitch, Solder Terminal, Locking, (Discontinued)

  • Mfr # 2-1761679-7
  • Zoro # G805892340
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2-1761679-7
Zoro #
G805892340
UPC #
-
Country of Origin
Switzerland

Dimensions

Length
1.3 in
Height
8.89 mm
Contact Plating Thickness
30 µin

Details

Item
Connector
Max. Temp.
105°C
Max. Voltage
250V AC
Application
Signal
Color
Blue
Material
PBT
Terminal Type
Through Hole
Features
With Daisy Chain
Connection Material
Phosphor Bronze
Hole Center to Center
2.54 mm
For Use With
AMP-Latch Receptacle
Connector Type
Header
Contact Type
Pin
Number of Contacts
20
Terminal Finish
Tin Plated
Connector Terminates To
Printed Circuit Board
Contact Finish
Gold Plated
Current Rating
1 A
Number of Rows
2
Flammability Rating
UL 94 V-0

Description

Board Connector, 20 Contact(S), 2 Row(S), Male, Straight, 0.1 Inch Pitch, Solder Terminal, Locking, Blue Insulator, Plug
