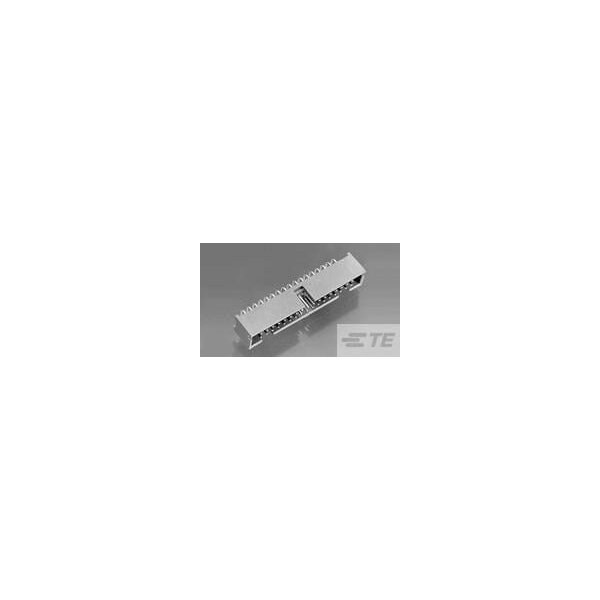

Board Connector, 24 Contact(S), 2 Row(S), Male, Right Angle, 0.1 Inch Pitch, Solder Terminal, (Discontinued)
- Mfr # 5104340-5
- Zoro # G605893660
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
5104340-5
Zoro #
G605893660
UPC #
-
Country of Origin
China
Dimensions
Length
1-1/2 in
Height
8.813 mm
Contact Plating Thickness
15 µin
Details
Item
Connector
Max. Temp.
105°C
Max. Voltage
250V AC
Application
Signal
Connector Type
Header
Terminal Type
Through Hole
Color
Black
Features
With Board Standoff and Daisy Chain
Connection Material
Phosphor Bronze
Hole Center to Center
2.54 mm
Material
Glass-Filled High Performance Polyamide
Connector Terminates To
Printed Circuit Board
Flammability Rating
UL 94 V-0
Number of Rows
2
Number of Contacts
24
Terminal Finish
Tin Plated
Contact Type
Pin
Contact Finish
Gold Plated; Gold Flash over Palladium Nickel
Current Rating
1 A
Description
Board Connector, 24 Contact(S), 2 Row(S), Male, Right Angle, 0.1 Inch Pitch, Solder Terminal, Locking, Black Insulator, Plug
