  11. Board Connector, 5 Contact(S), 1 Row(S), Female, 0.156 Inch Pitch, Idc Terminal, Locking, Orange

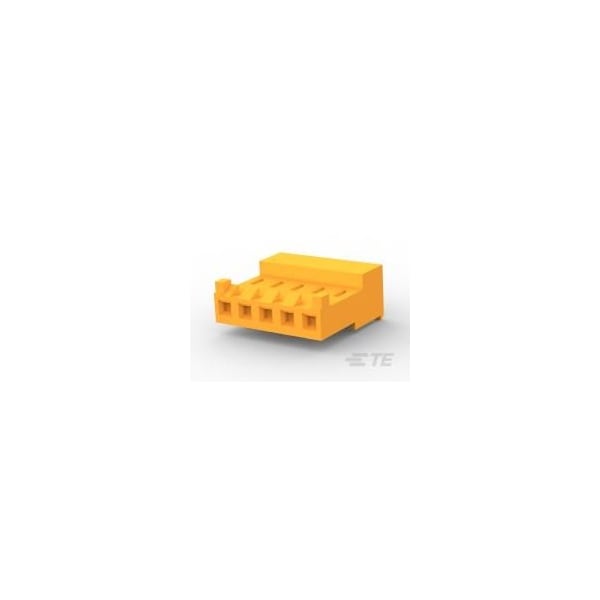

Te Connectivity Board Connector, 5 Contact(S), 1 Row(S), Female, 0.156 Inch Pitch, Idc Terminal, Locking, Orange 3-644460-5 - main

Board Connector, 5 Contact(S), 1 Row(S), Female, 0.156 Inch Pitch, Idc Terminal, Locking, Orange

  • Mfr # 3-644460-5

  • Zoro # G805893682

product price: $1.85
/ea
Sold in multiples of 42 for $77.70

Key Features

Max. Single Wire Size
0.9 mm2
Min. Single Wire Size
0.8 mm2
Max. Temp.
105°C
Max. Voltage
600V AC
Application
Power, Signal
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3-644460-5
Zoro #
G805893682
UPC #
-
Country of Origin
China

Dimensions

Max. Single Wire Size
0.9 mm2
Min. Single Wire Size
0.8 mm2
Length
19.81 mm
Height
9.02 mm
Max. Insulation Dia.
2.41 mm
Contact Plating Thickness
0.076 µm

Details

Item
Connector Assembly
Max. Temp.
105°C
Max. Voltage
600V AC
Application
Power, Signal
Standards
CSA Certified; UL E28476; UL Recognized
Color
Orange
Connection Material
Copper Alloy
Material
Nylon
For Use With
MTA .156 Header
Hole Center to Center
3.96 mm
Terminal Type
Insulation Displacement Crimp
Wire Type
Discrete; Stranded
Flammability Rating
UL 94 V-2
Number of Rows
1
Current Rating
7 A
Contact Type
Socket
Connector Terminates To
Printed Circuit Board; Wire & Cable
Number of Contacts
5
Contact Finish
Gold Plated; Gold Flash
Terminal Finish
Tin Plated

Description

Board Connector, 5 Contact(S), 1 Row(S), Female, 0.156 Inch Pitch, Idc Terminal, Locking, Orange Insulator, Receptacle
