  11. Board Connector, 5 Contact(S), 1 Row(S), Male, Right Angle, 0.079 Inch Pitch, Solder Terminal,

This item is Discontinued.

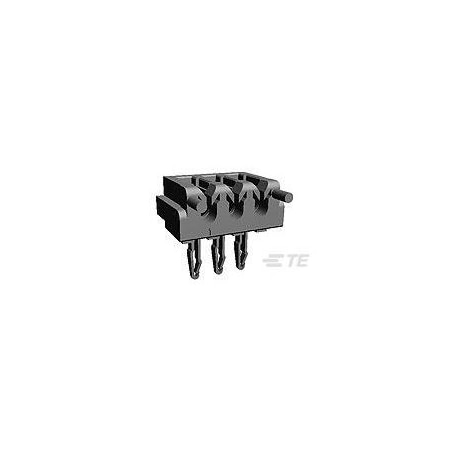

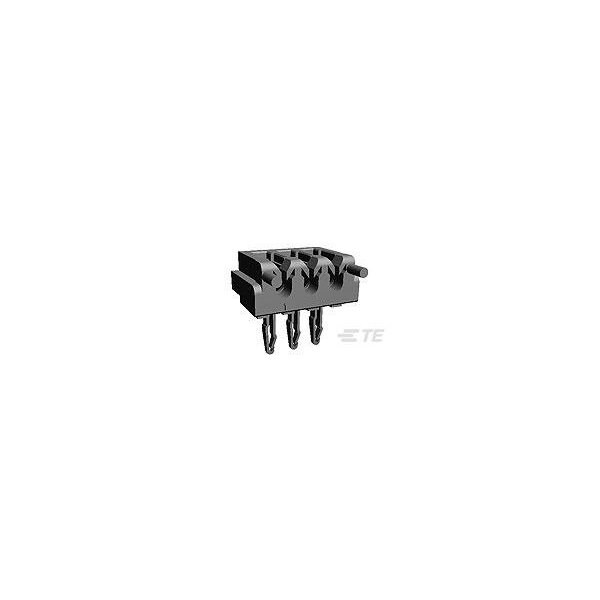

Te Connectivity Board Connector, 5 Contact(S), 1 Row(S), Male, Right Angle, 0.079 Inch Pitch, Solder Terminal, 2-173983-5

Board Connector, 5 Contact(S), 1 Row(S), Male, Right Angle, 0.079 Inch Pitch, Solder Terminal, (Discontinued)

  • Mfr # 2-173983-5
  • Zoro # G705892044
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2-173983-5
Zoro #
G705892044
UPC #
-
Country of Origin
China

Dimensions

Height
4 mm
Length
12 mm
Max. Insulation Dia.
0.041 in
Contact Plating Thickness
1 µm

Details

Item
PCB Mount Header
Max. Voltage
125V AC/DC
Max. Temp.
105°C
Standards
UL 94V-0; CSA Certified; UL E28476
Terminal Type
Through Hole - Solder
Hole Center to Center
2 mm
Features
Partially Shrouded
Connection Material
Phosphor Bronze
Color
Yellow
Material
Glass-Filled PBT
Contact Type
Pin
Terminal Finish
Pre-Tin Plated
Number of Contacts
5
Contact Finish
Pre-Tin Plated
Connector Terminates To
Printed Circuit Board
Current Rating
2 A
Flammability Rating
UL 94 V-0
Number of Rows
1

Description

Board Connector, 5 Contact(S), 1 Row(S), Male, Right Angle, 0.079 Inch Pitch, Solder Terminal, Locking, Cream-Yell Insulator, Plug
