Shop TE CONNECTIVITY

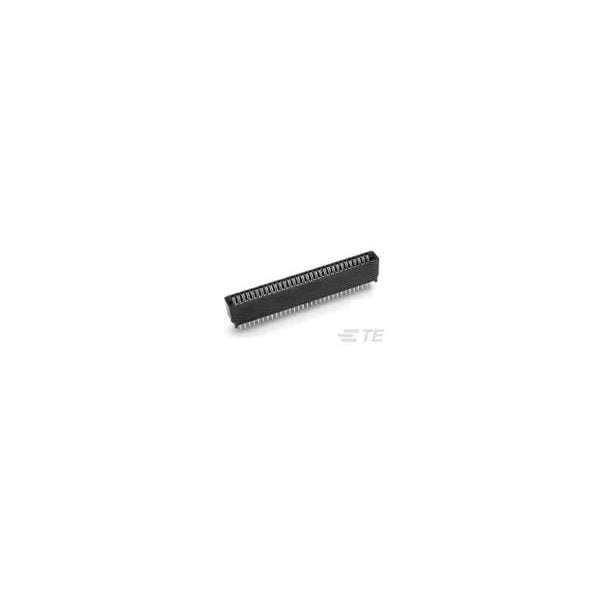

Card Edge Connector, 88 Contact(S), 2 Row(S), Female, Straight, Solder Terminal

  • Mfr # 3-6437270-7

  • Zoro # G805926823

product price:
$
37.59
/ea
Sold in multiples of 3 for $112.77

Key Features

Type
Receptacle
Color
Black
Insulation Material
Thermoplastic
Max. Voltage
600V DC
Maximum Voltage
600 V DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
3-6437270-7
Zoro #
G805926823
UPC #
-
Country of Origin
Mexico

Dimensions

Height
5.49 mm
Contact Plating Thickness
0.76 µm

Details

Item
Connector
Type
Receptacle
Color
Black
Insulation Material
Thermoplastic
Max. Voltage
600V DC
Maximum Voltage
600 V DC
Application
Signal
Current
3 A
Standards
UL 94 V-0
Maximum Operating Temperature
125 Degrees C
UL 94 Flammability Rating
V-0
Material
Thermoplastic
Connector Type
Receptacle
Terminal Type
Through Hole - Solder
Current Rating
3 A
Max. Temp.
125°C
Hole Center to Center
2.54 mm
Contact Finish
Gold Plated
Connection Material
Copper Alloy
Number of Rows
2
For Use With
Printed Circuit Board
Contact Type
Socket
Number of Contacts
44
Terminal Finish
Tin-Lead Plated
Connector Terminates To
Printed Circuit Board
Flammability Rating
UL 94 V-0
