Specifications
Product Information
MFR #
5530843-6
Zoro #
G901043301
UPC #
-
Country of Origin
China
Dimensions
Height
15.49 mm
Contact Plating Thickness
0.76 µm
Details
Item

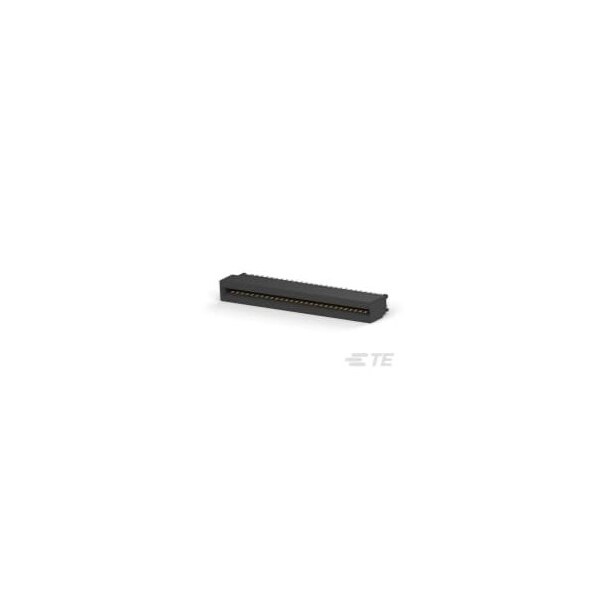

Connector Assembly
Max. Voltage
400V AC
Max. Temp.
85°C
Application
Power, Signal
Connection Material
Phosphor Bronze
Hole Center to Center
0.1 in
For Use With
Printed Circuit Board
Color
Black
Terminal Type
Through Hole - Solder
Material
Glass-Filled Polyester
Connector Terminates To
Printed Circuit Board
Flammability Rating
UL 94 V-0
Number of Rows
2
Number of Contacts
56
Contact Finish
Gold Plated
Current Rating
3 A
Contact Type
Socket
Terminal Finish
Matte Tin Plated
