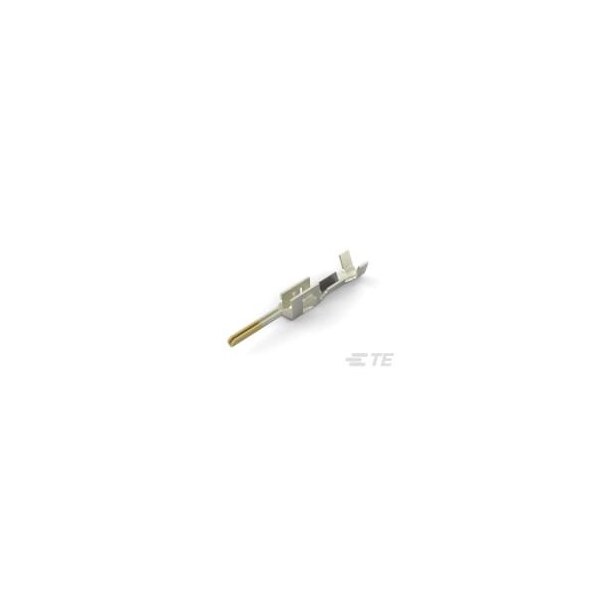

Connector Accessory, 0.035In Min Cable Dia, 0.06In Max Cable Dia, Contact, Brass (Discontinued)
- Mfr # 1-794613-1
- Zoro # G305785388
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
1-794613-1
Zoro #
G305785388
UPC #
-
Country of Origin
China
Dimensions
Max. Insulation Dia.
1.52 mm
Min. Single Wire Size
30 AWG
Max. Single Wire Size
26 AWG
Contact Plating Thickness
0.38 µm
Maximum Single Wire Size
26 AWG
Minimum Single Wire Size
30 AWG
Details
Item
Contact
Type
Pin
Insulation Material
None
Maximum Voltage
250 V AC
Current
5 A
Maximum Operating Temperature
105 Degrees C
Application
Power
Contact Finish
Gold Plated
Wire Type
Discrete; Stranded
Connection Material
Brass
Max. Voltage
250V AC
Max. Temp.
105°C
Contact Type
Pin
Terminal Type
Crimp
Current Rating
5 A
Connector Terminates To
Wire & Cable
Terminal Finish
Tin Plated
Termination Style
Crimp
