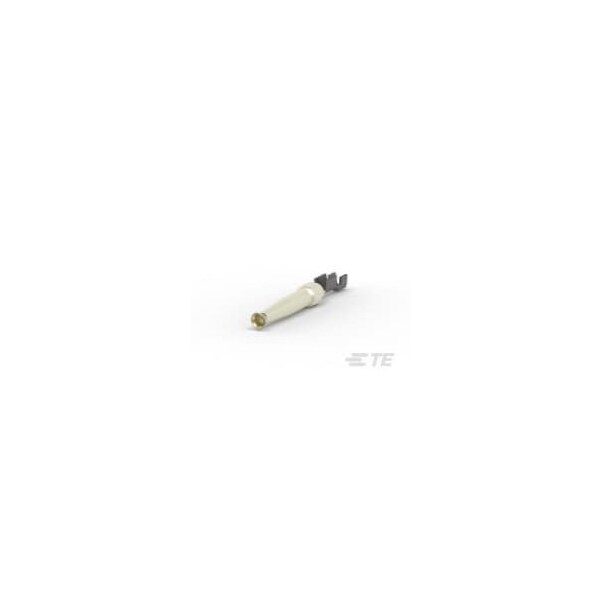

Connector Accessory, 0.03In Min Cable Dia, 0.04In Max Cable Dia, Contact, Phosphor Bronze (Discontinued)
- Mfr # 1658538-2
- Zoro # G505790427
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
1658538-2
Zoro #
G505790427
UPC #
-
Country of Origin
China
Dimensions
Max. Single Wire Size
24 AWG
Max. Insulation Dia.
0.04 in
Min. Single Wire Size
28 AWG
Contact Plating Thickness
30 µin
Maximum Single Wire Size
24 AWG
Minimum Single Wire Size
28 AWG
Details
Item
Contact
Current
1.2 A
Maximum Operating Temperature
105 Degrees C
Application
Signal
For Use With
CPC Connectors; AMPLIMITE HDP-20
Max. Temp.
105°C
Terminal Type
Crimp
Connection Material
Phosphor Bronze
Features
With Wire Insulation Support
Current Rating
1.2 A
Contact Type
Socket
Contact Finish
Gold Plated
Terminal Finish
Tin Plated
Connector Terminates To
Wire & Cable
Termination Style
Crimp
Restrictions
WARNING:
Cancer and Reproductive Harm
For more information go to
www.P65Warnings.ca.gov
