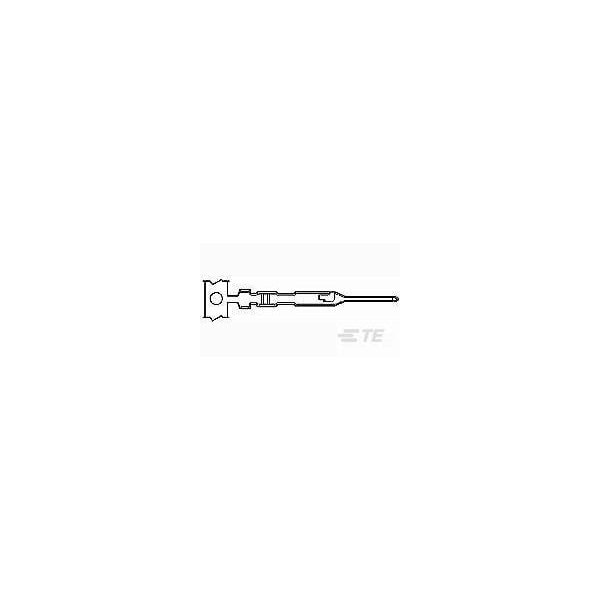

Connector Contact, 22 AWG, 300 V AC, Crimp Termination Only
Mfr # 104505-9
Zoro # G001009344
product price:Â
$
0.67
/ea
Sold in multiples of 500 for $335.00
Key Features
Termination Style
Crimp Termination Only
Maximum Wire Size
22 AWG
Minimum Wire Size
26 AWG
Contact Material
Phosphor Bronze
Maximum Voltage
300 V AC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 104505-9
- Zoro #
- G001009344
- UPC #
- -
- Country of Origin
- Mexico
Dimensions
- Maximum Wire Size
- 22 AWG
- Minimum Wire Size
- 26 AWG
- Max. Insulation Dia.
- 0.054 in
- Contact Plating Thickness
- 100 to 200 µin
Details
- Item
- Connector Contact
- Termination Style
- Crimp Termination Only
- Contact Material
- Phosphor Bronze
- Maximum Voltage
- 300 V AC
- Maximum Operating Temperature
- 105 Degrees C
- Standards
- CSA LR7189, UL E28476
- Features
- With Wire Insulation Support
- Contact Type
- Pin
- Current Rating
- 3 A
- Contact Finish
- Bright Tin Plated
- Minimum Operating Temperature
- -65 Degrees C
