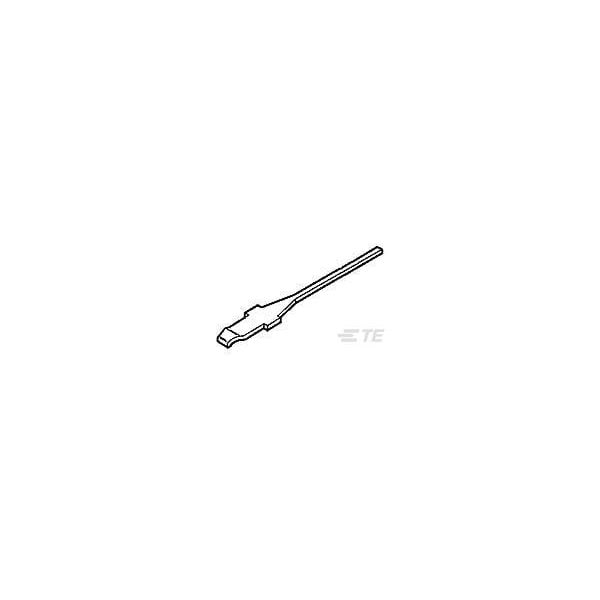

CONTACT PWR LK SRS1 LS PC PSTD
Mfr # 54326-2
Zoro # G701026559
product price:Â
$
1.59
/ea
Sold in multiples of 100 for $159.00
Key Features
Operating Temperature Range
-40 to 75 °C
Contact Mating Area Plating Material
Silver
CSA Certified
Yes
Termination Type
Through Hole - Solder
Agency/Standard
CSA, UL
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 54326-2
- Zoro #
- G701026559
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Contact Mating Area Plating Thickness
- 5.08 µin
- Termination Post &Tail Length
- 1.3 in
- Contact Termination Area Plating Thickness
- 200 µin
- Wire/Cable Size
- 18 to 12 AWG
Details
- Operating Temperature Range
- -40 to 75 °C
- Contact Mating Area Plating Material
- Silver
- CSA Certified
- Yes
- Termination Type
- Through Hole - Solder
- Agency/Standard
- CSA, UL
- Connector System
- Wire-to-Board
- Contact Current Rating (Max)
- 31 A
- UL Rating
- Recognized
- Circuit Application
- Power
- Contact Termination Area Plating Material
- Silver
- Contact Base Material
- Copper
- Connector & Contact Terminates To
- Wire & Cable
- Operating Voltage
- 600 VAC
- UL Flammability Rating
- UL 94V-0
- Contact Design
- Spring Latch, Spring Loaded
- Product Type
- Contact
